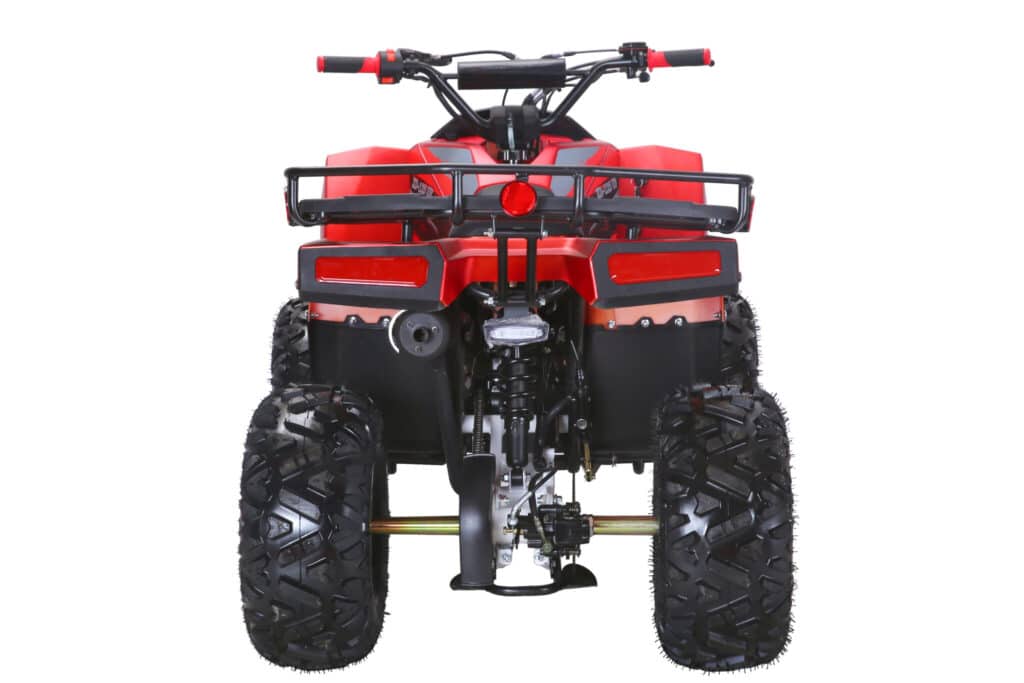

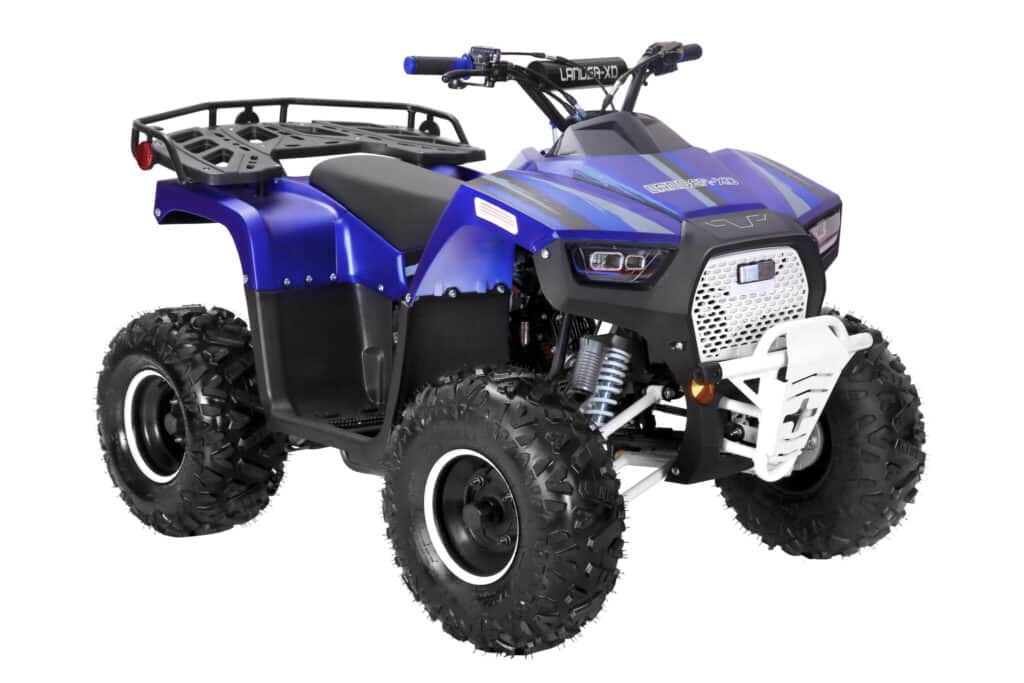

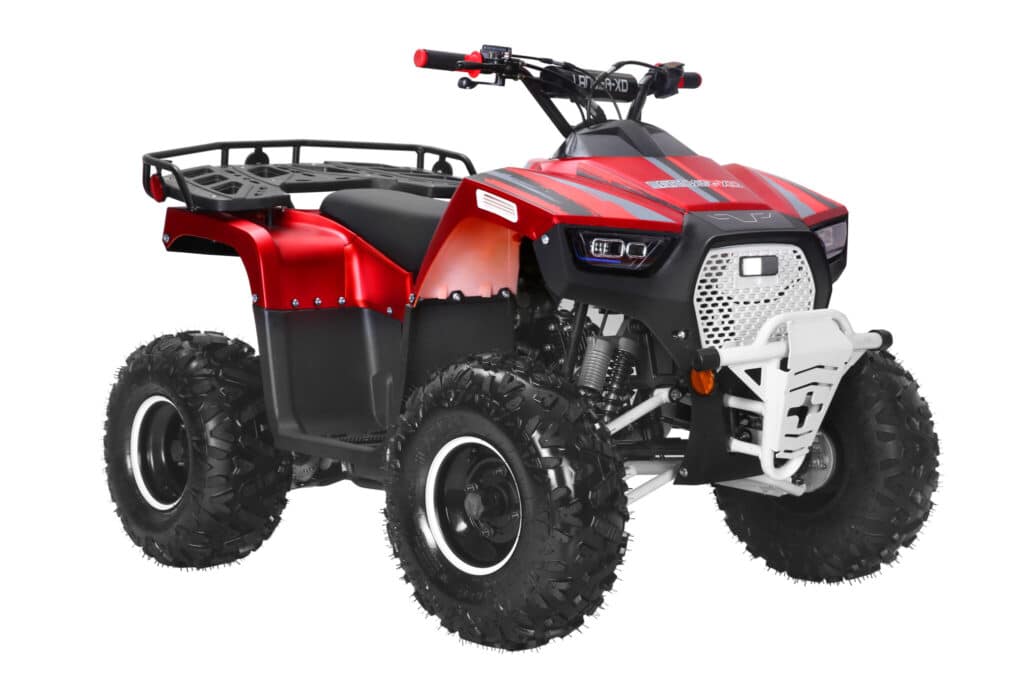

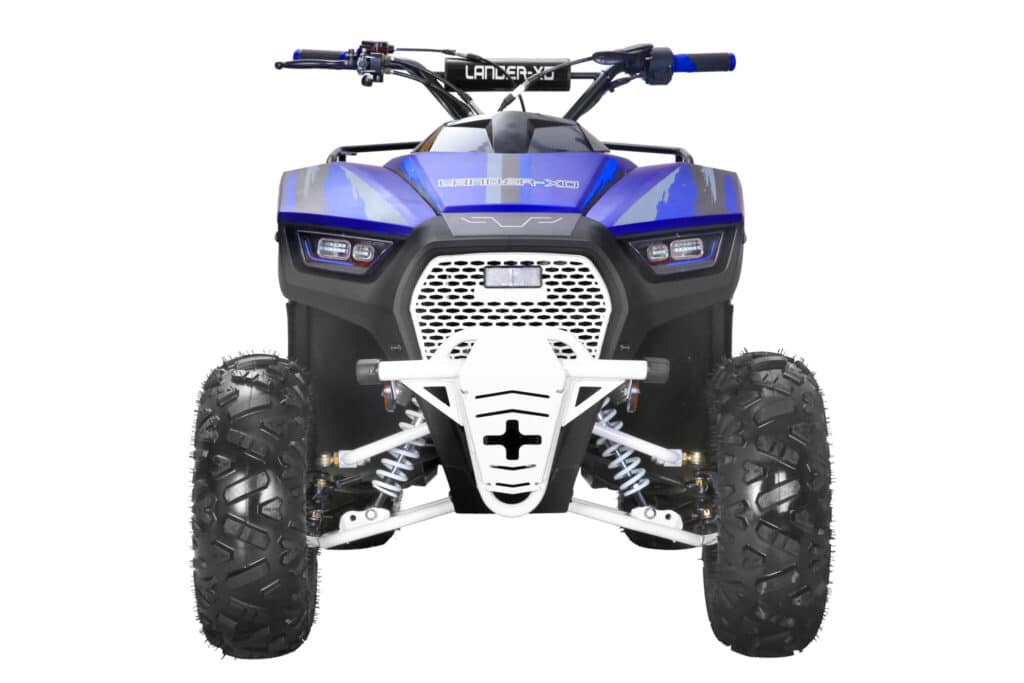

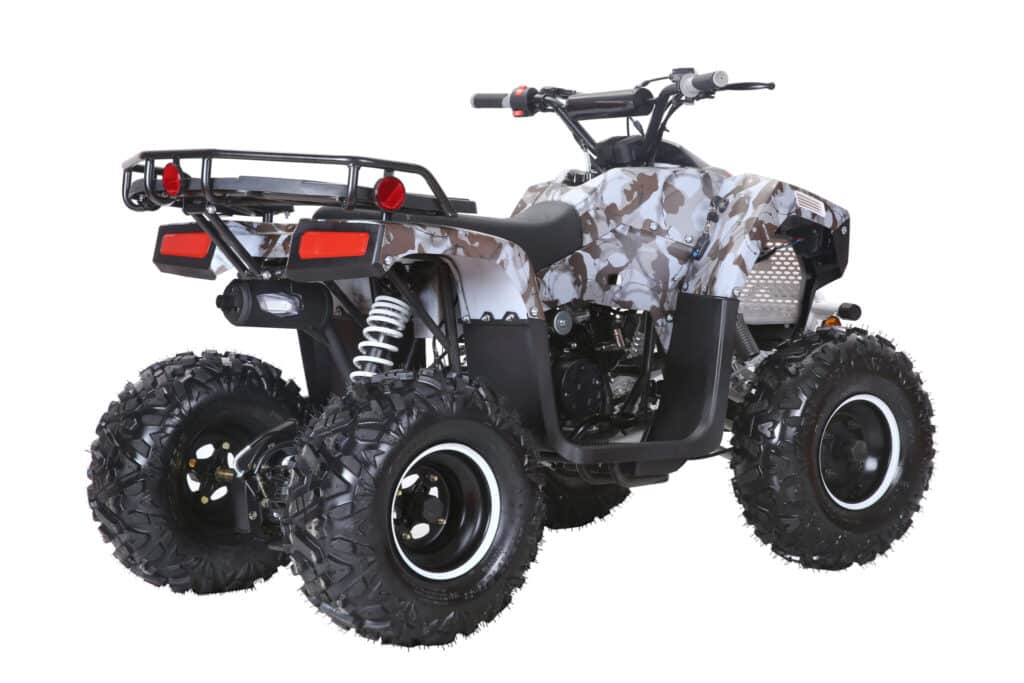

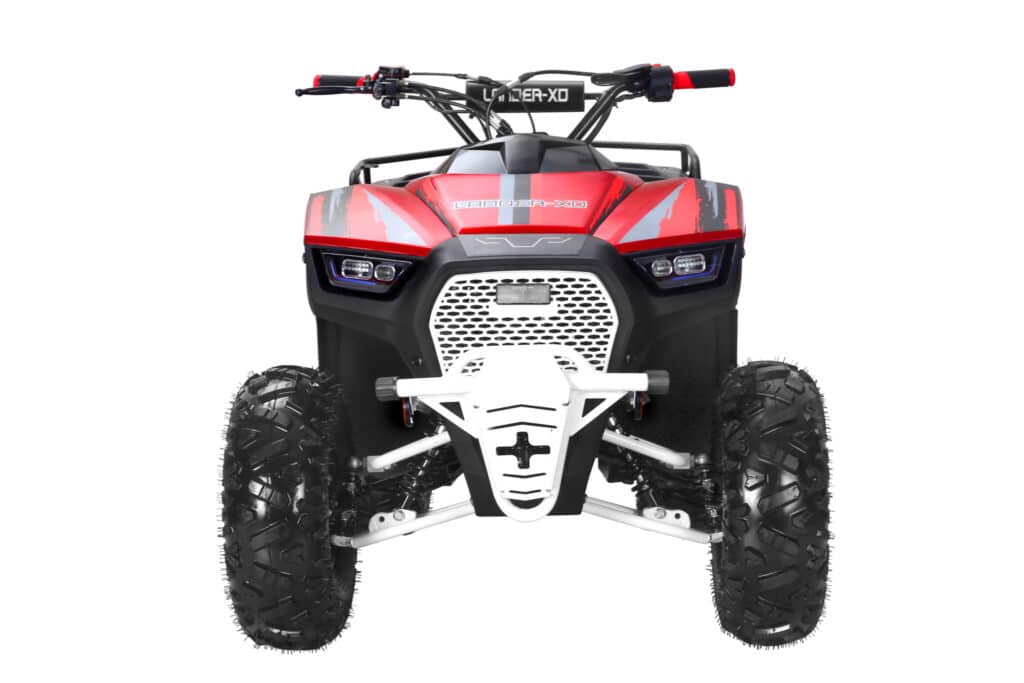

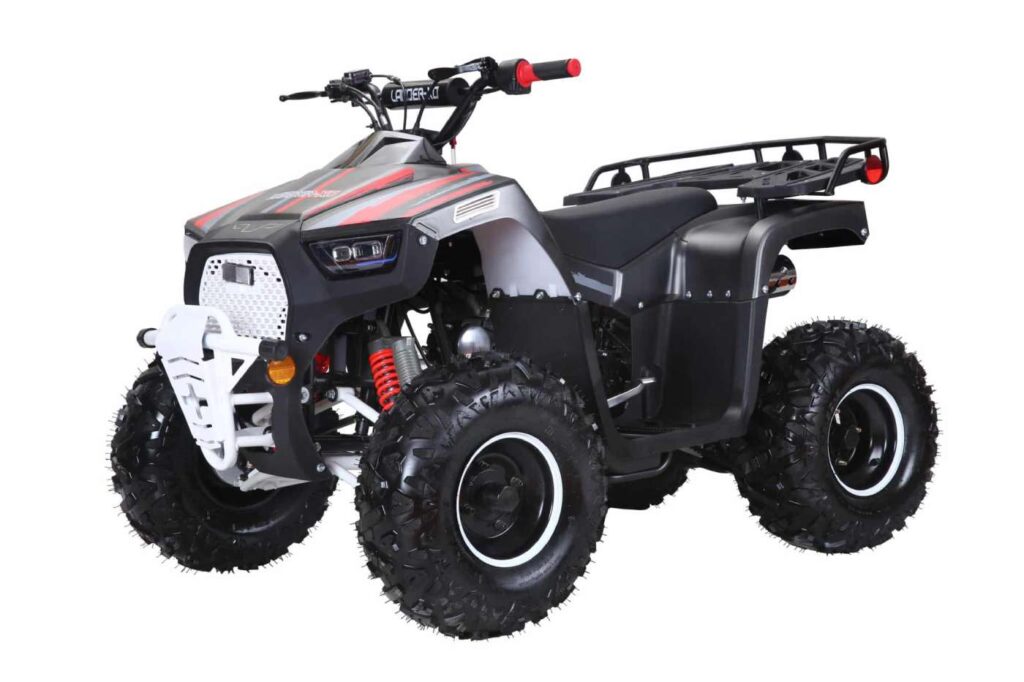

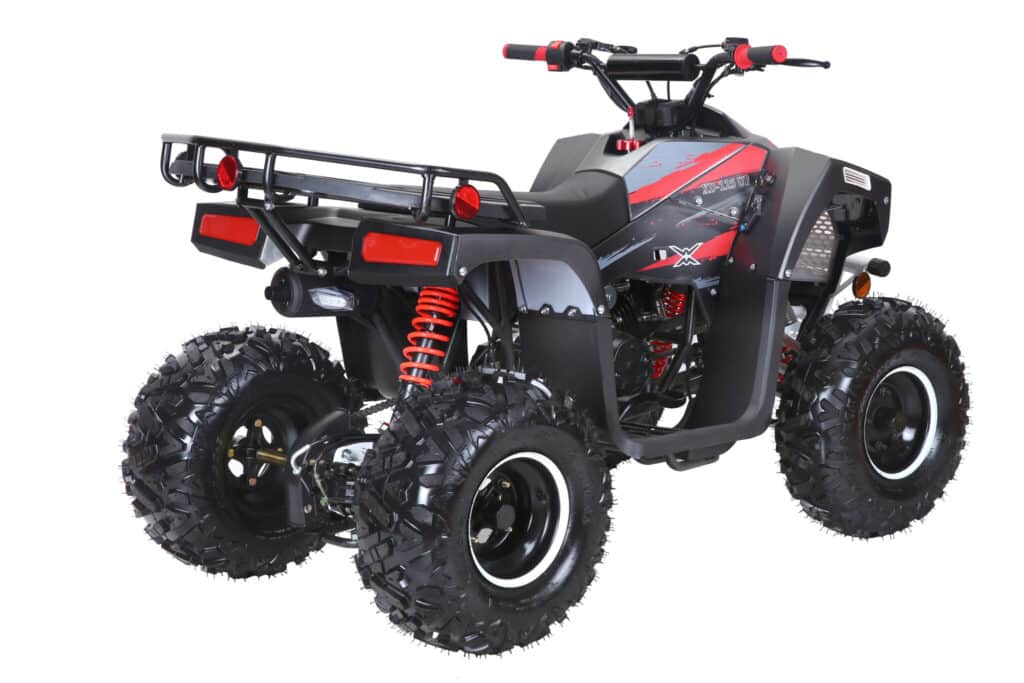

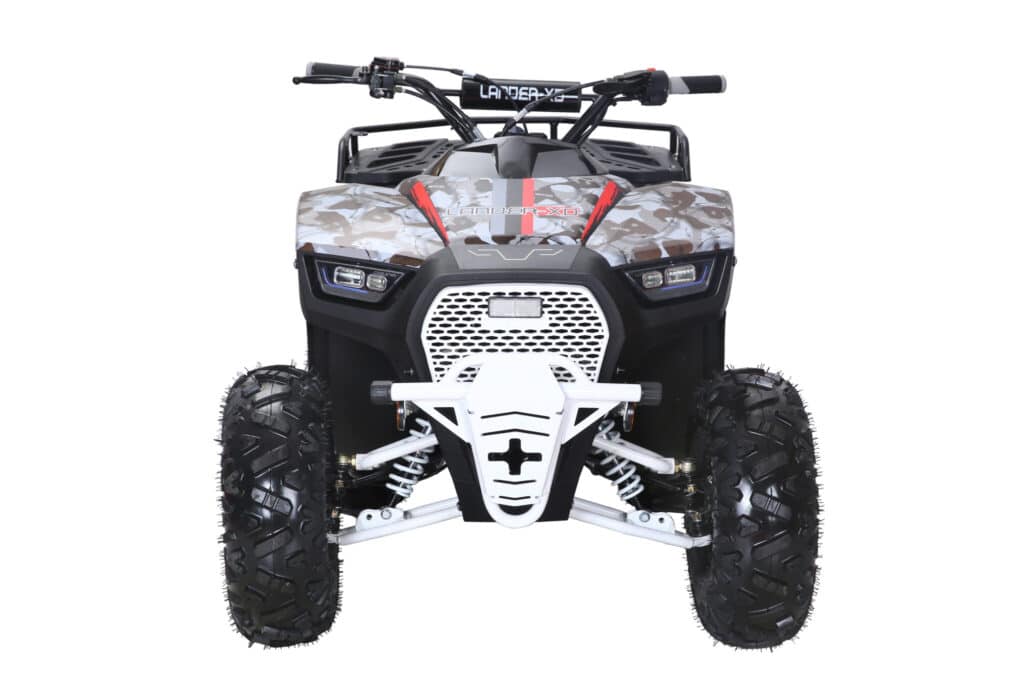

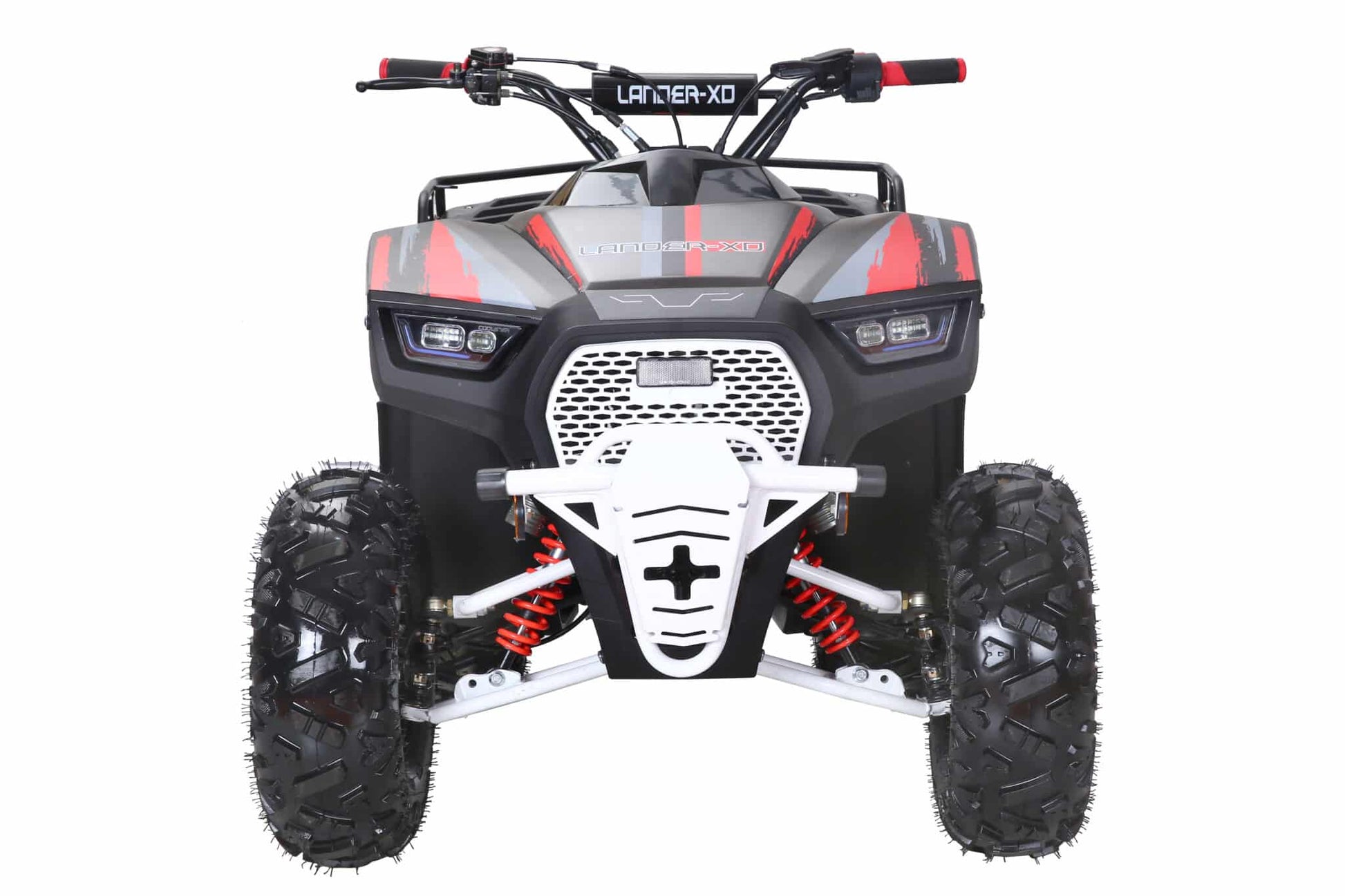

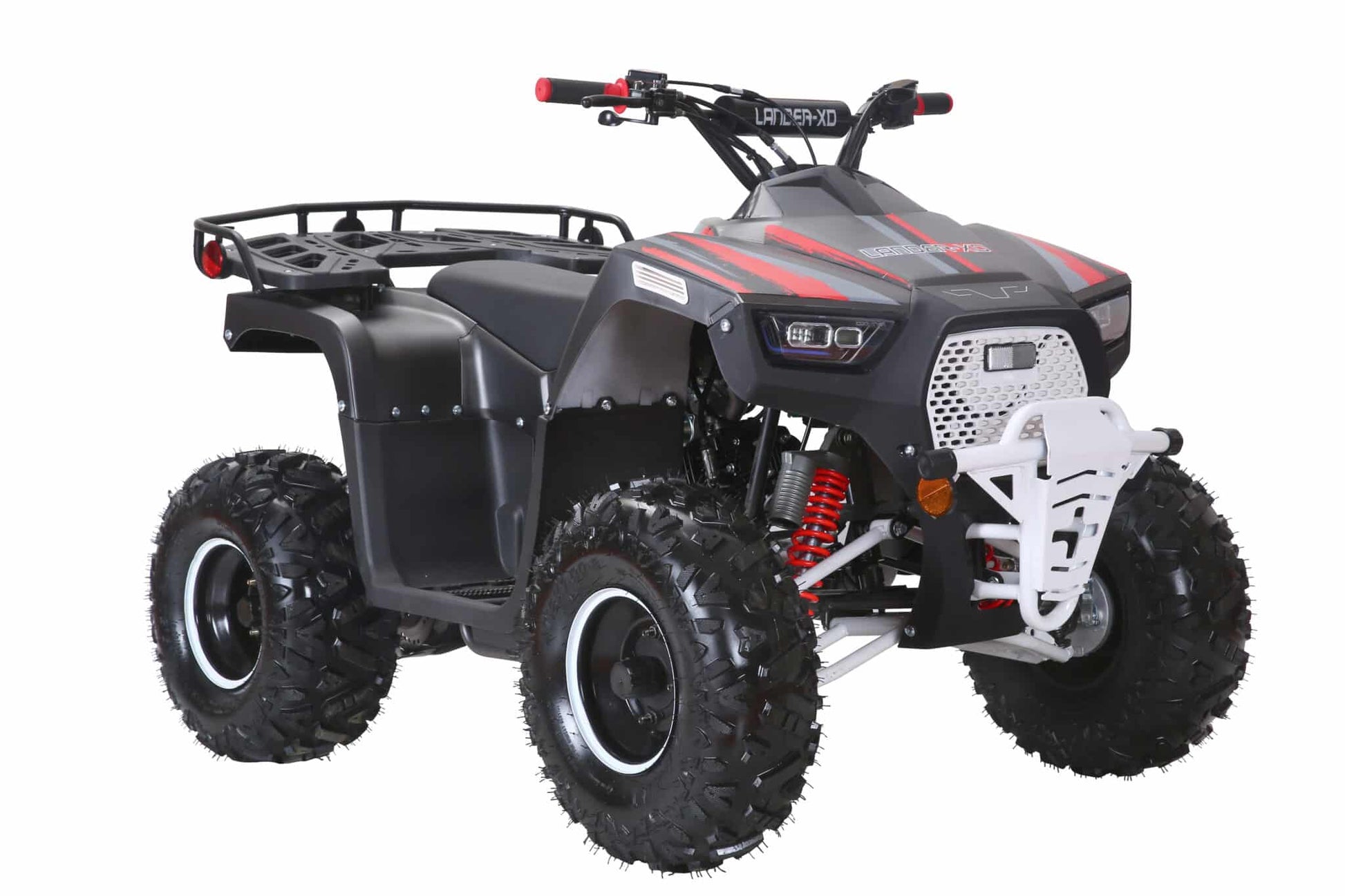

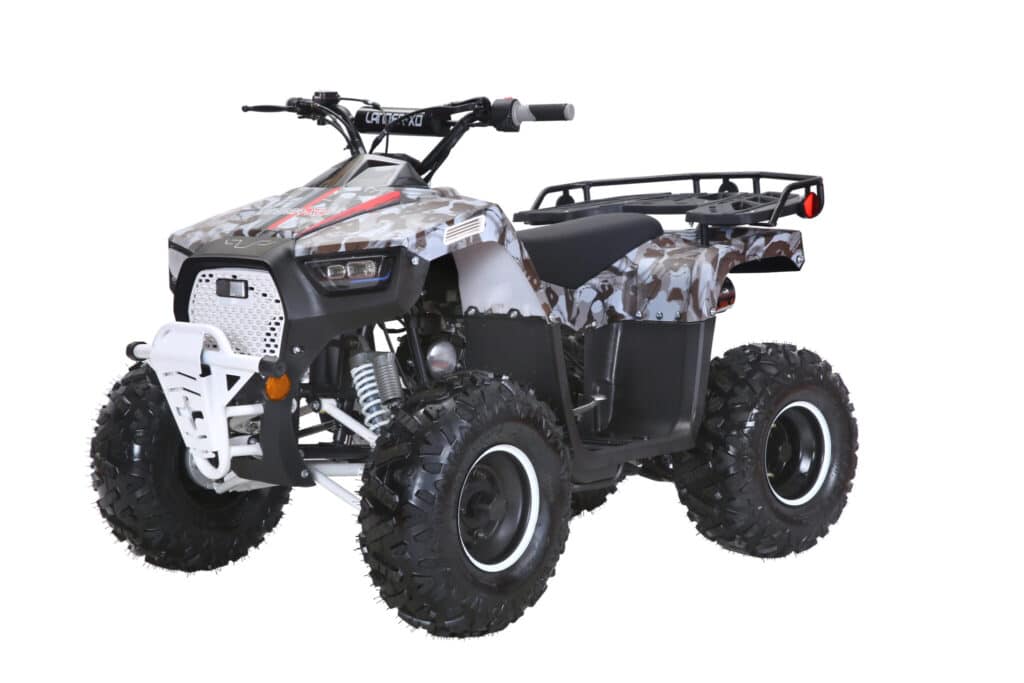

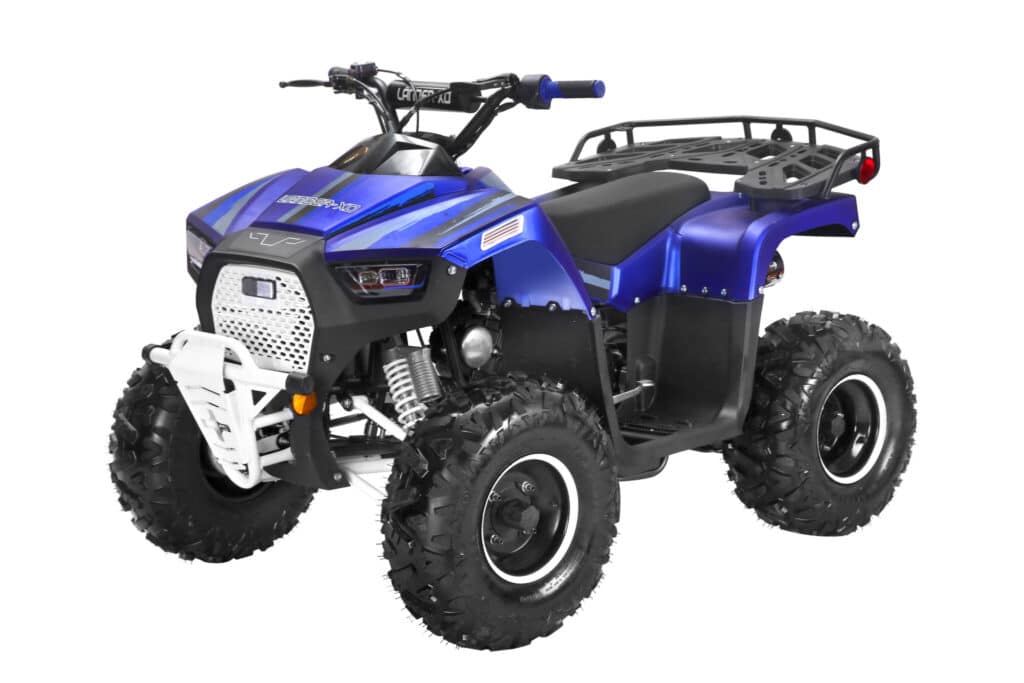

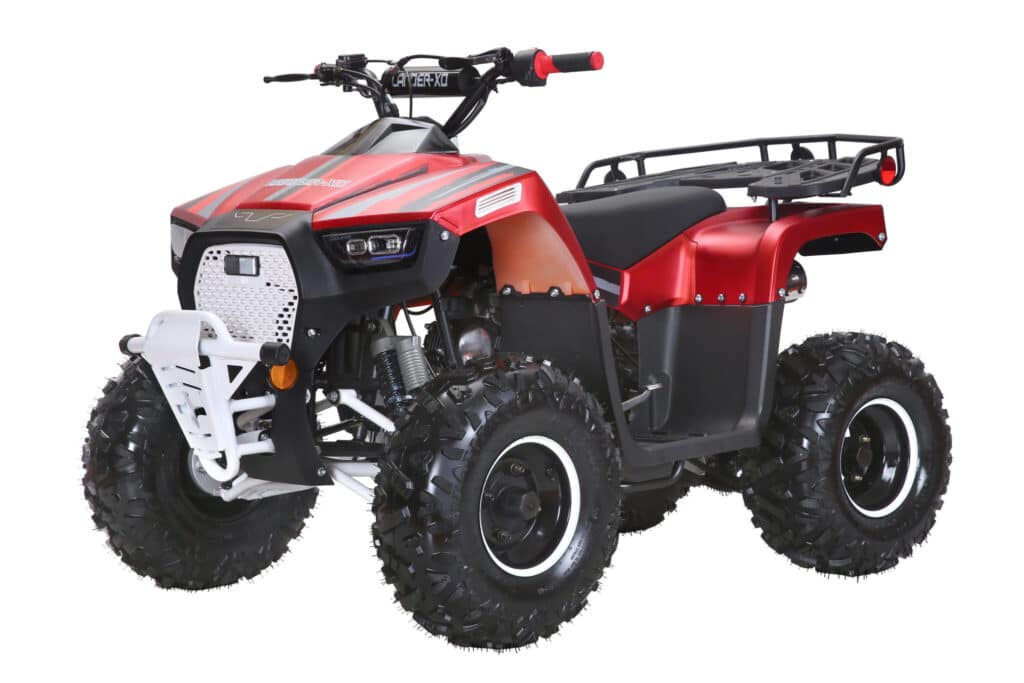

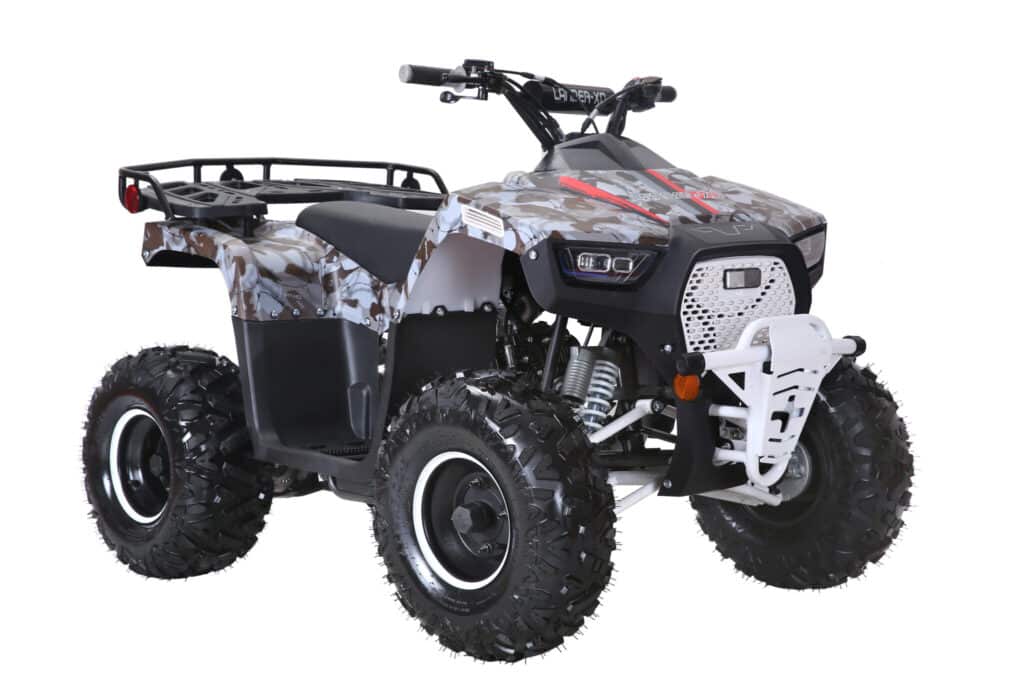

125cc ATV - 3125UF - Tested and Fully Assembled

Model Number:

 Lander-XD 125UF

 Engine Type:

 120CC Single cylinder, 4-stroke

 Displacement:

 120cc

 Max Torque:

 6.9Nm/(6500r±500r)/min

 Max Power:

 5.5KW/(8500r±500r)/min

 Bore Stroke:

 52.4 x 55.5mm

 Ignition:

 CDI

 Starting System:

 Electric

 Battery:

 12V, 5Ah

 Clutch:

 Automatic

 Transmission:

 Chain, rear wheel drive

 Brakes Front/Rear:

 Drum/hydraulic disc

 Tires Front/Rear:

19 x 7 – 8/18 x 9.5 – 8

 Fuel Capacity:

 3L

 Weight:

 G.W./N.W (118KG/117KG)

 Max Load:

 75kg

 Wheelbase:

 980mm

 Dimensions:

 1600 x 1025 x 1000 mm

 Height to Seat:

 710mm

 Min. Ground Clearance:
