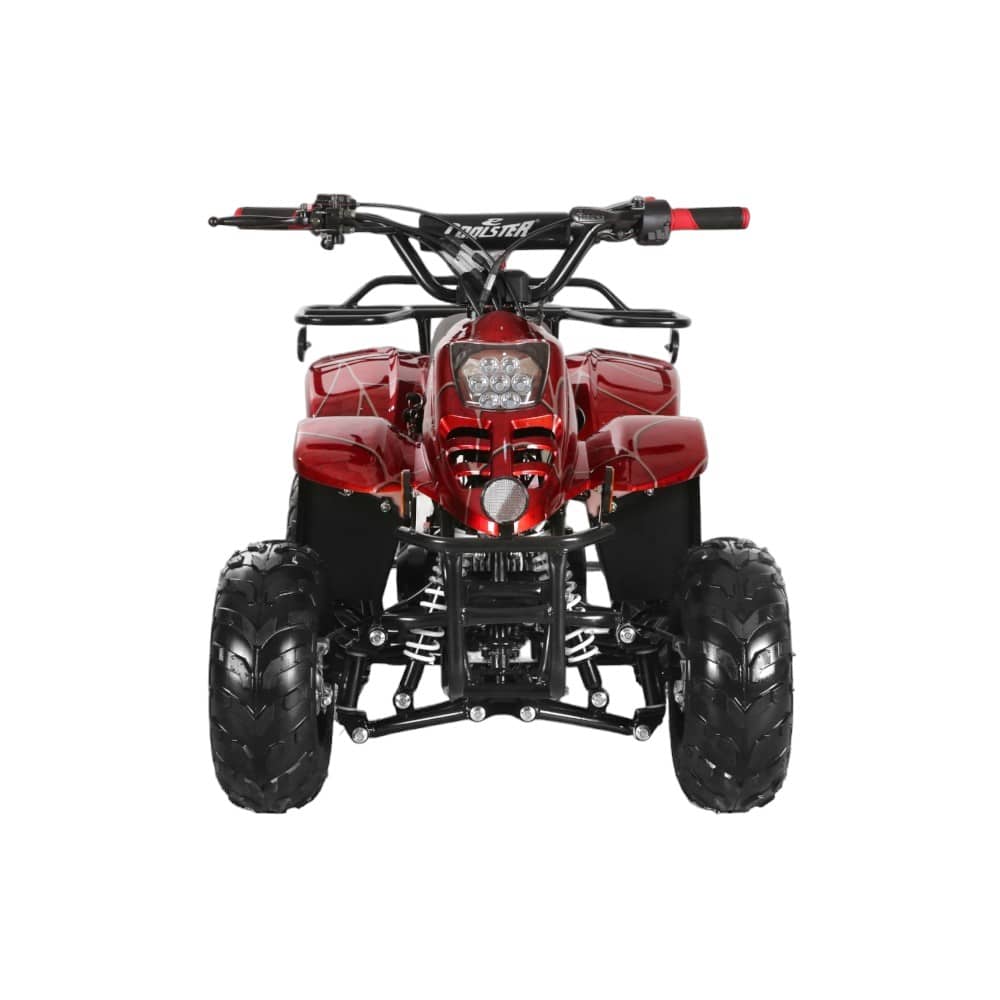

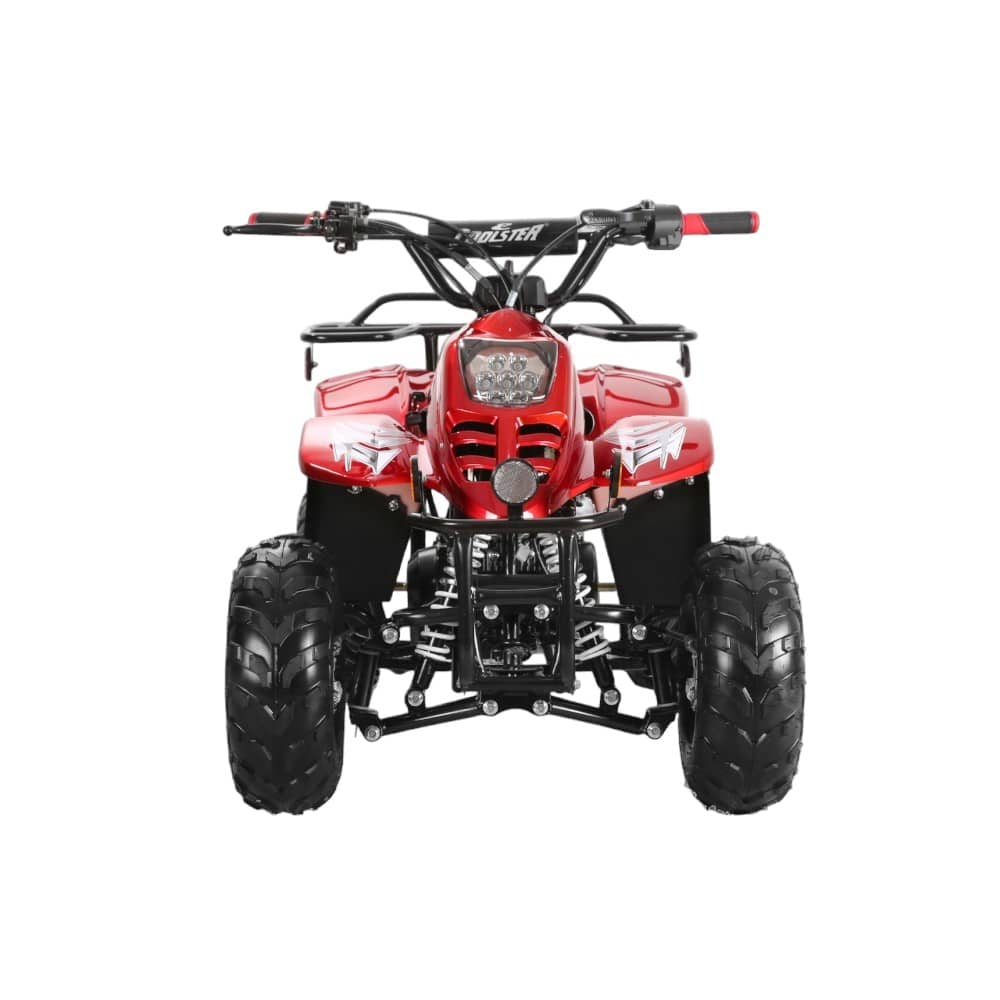

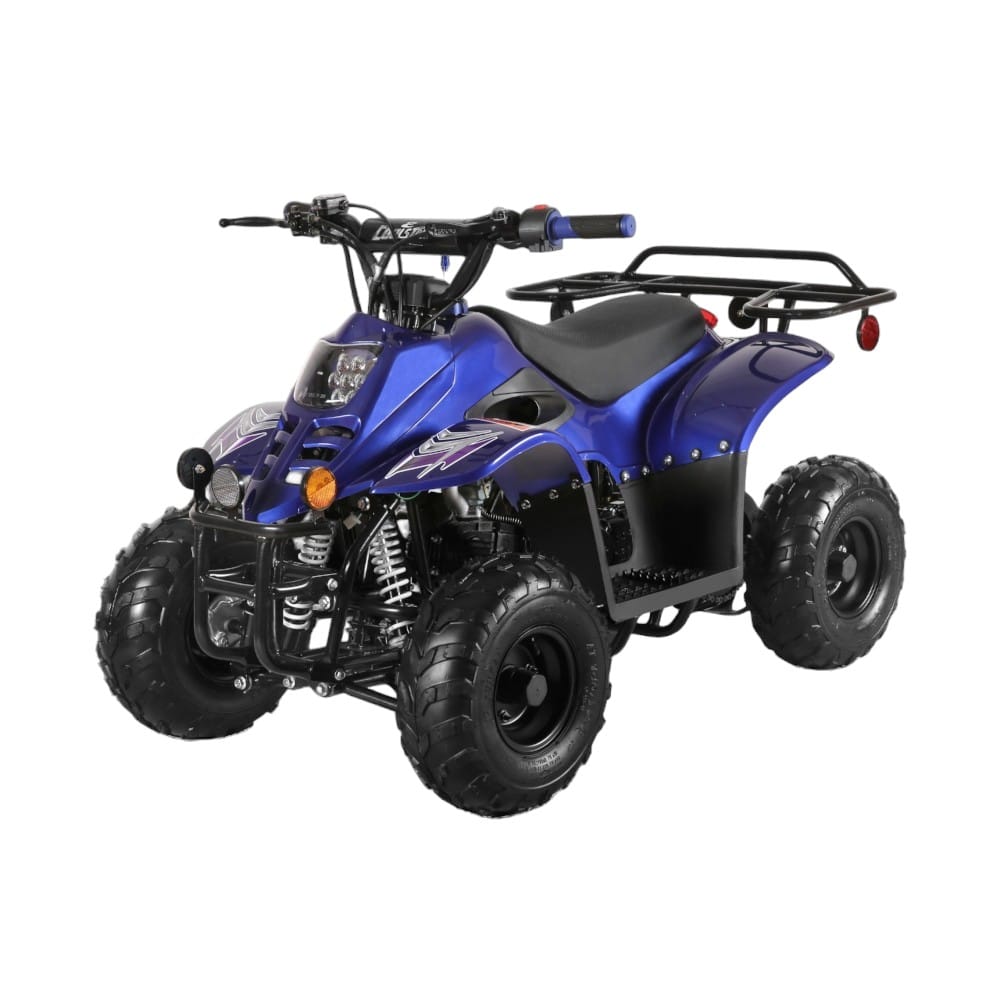

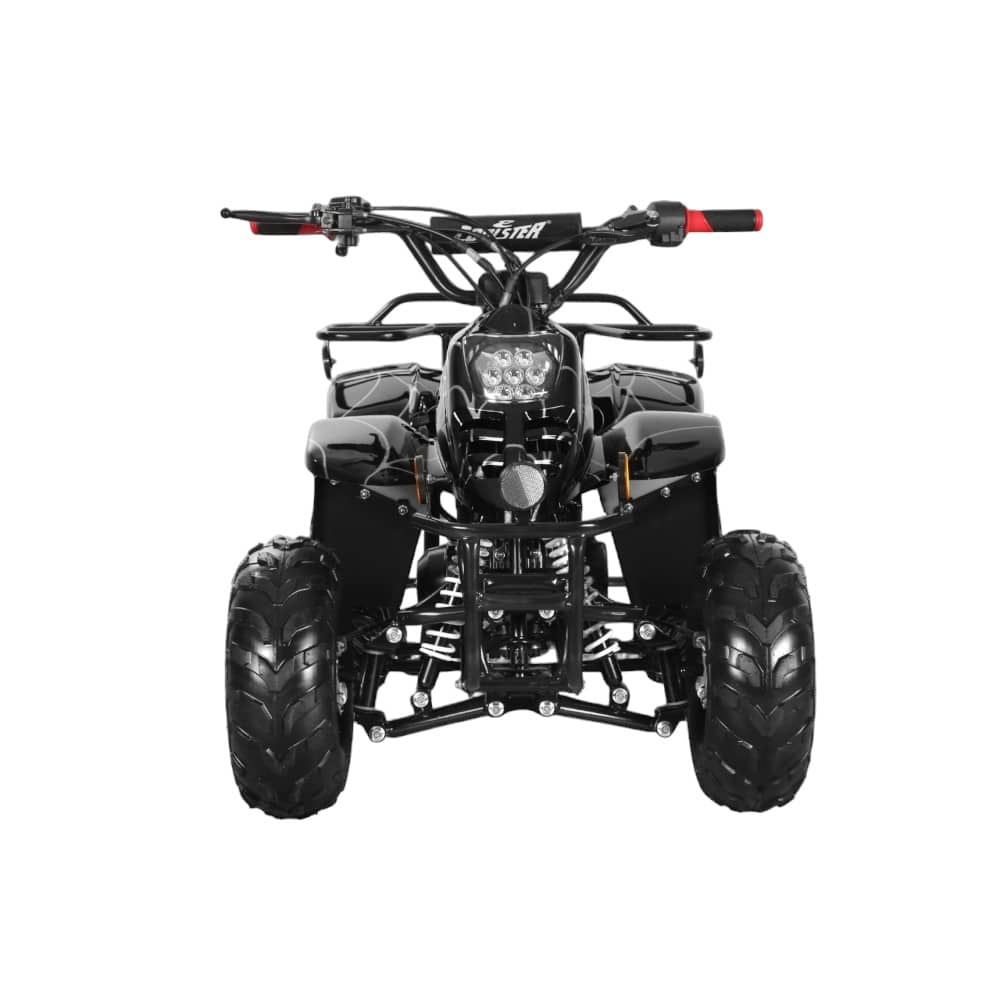

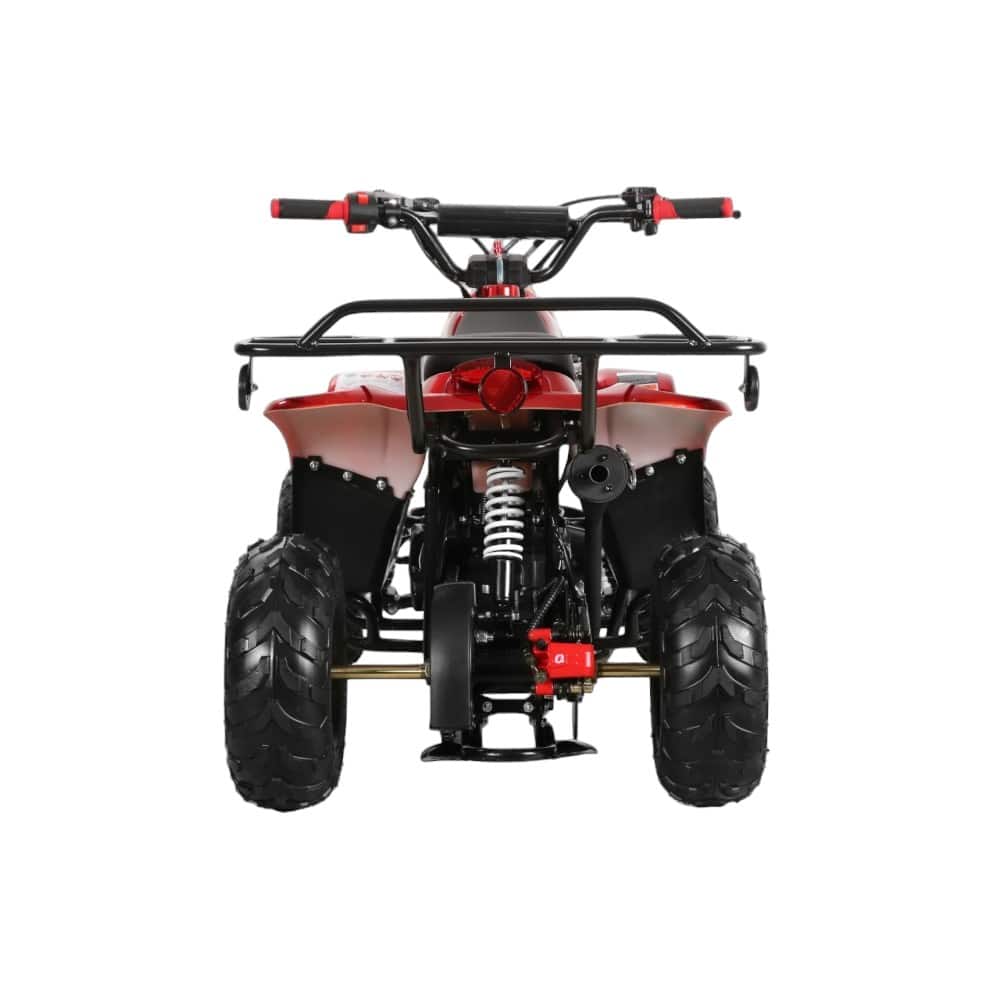

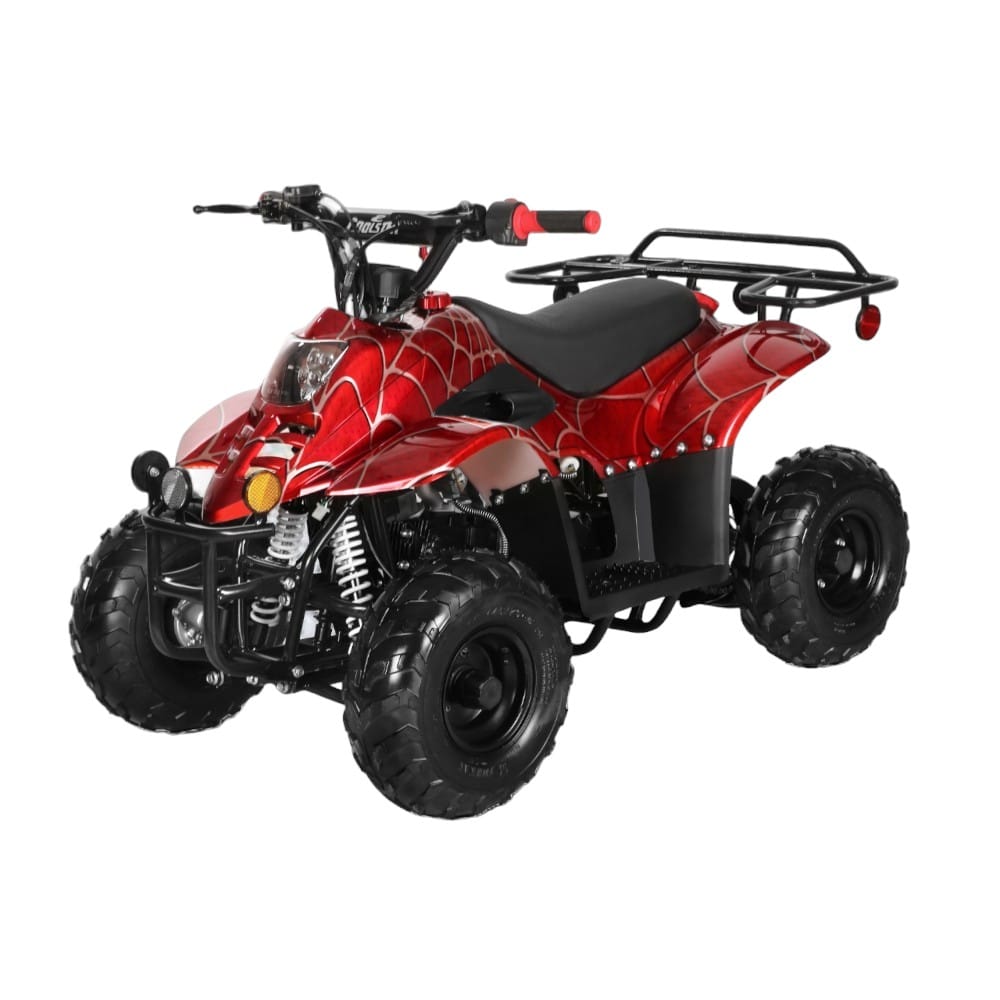

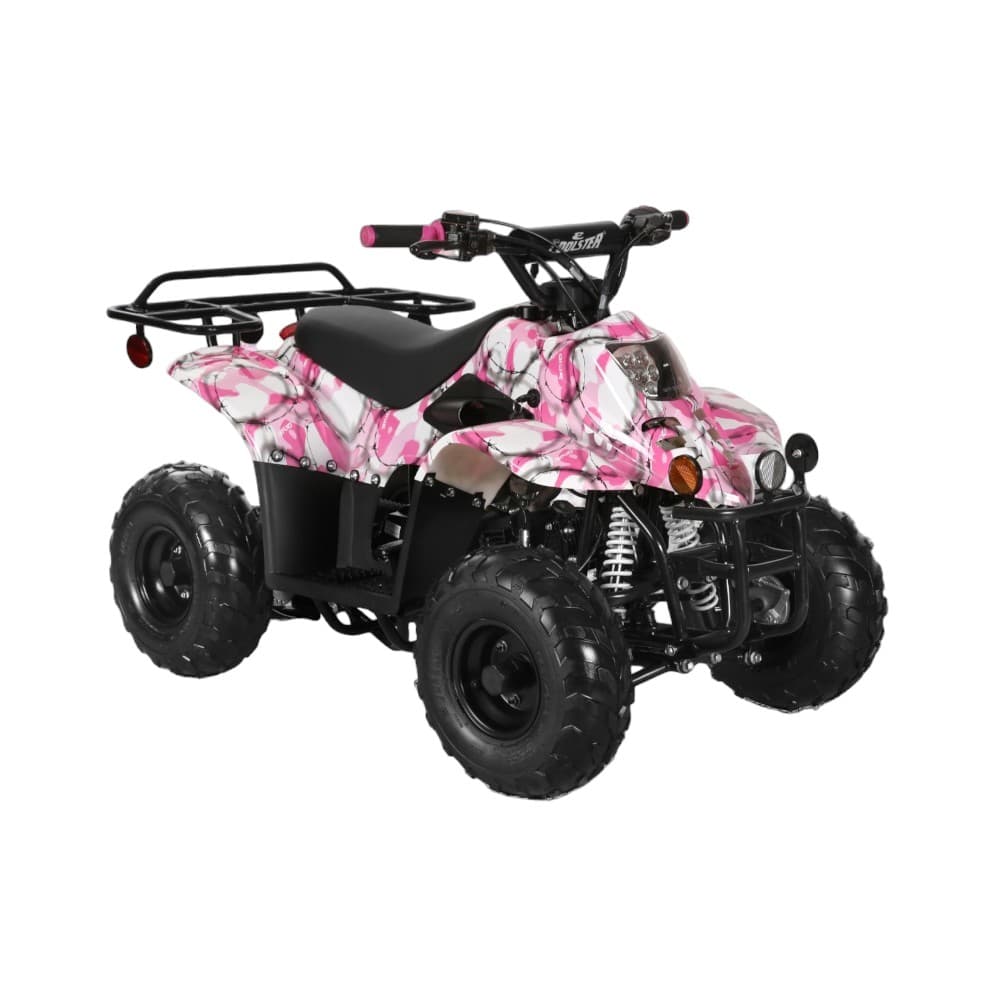

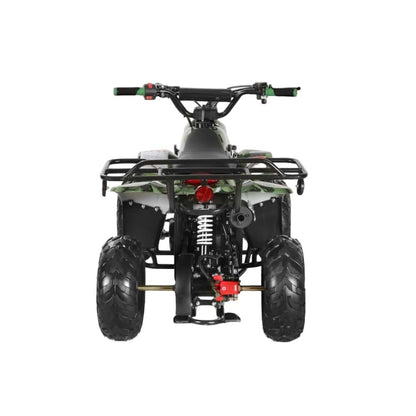

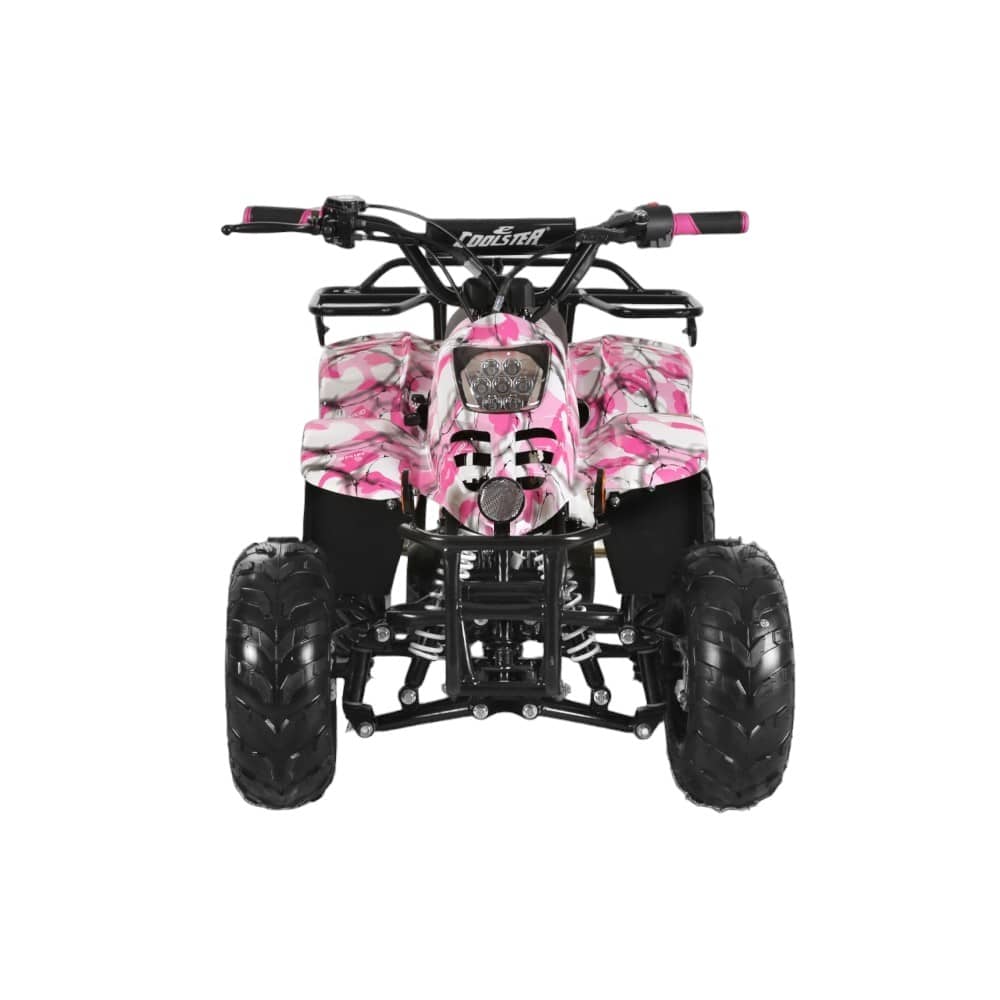

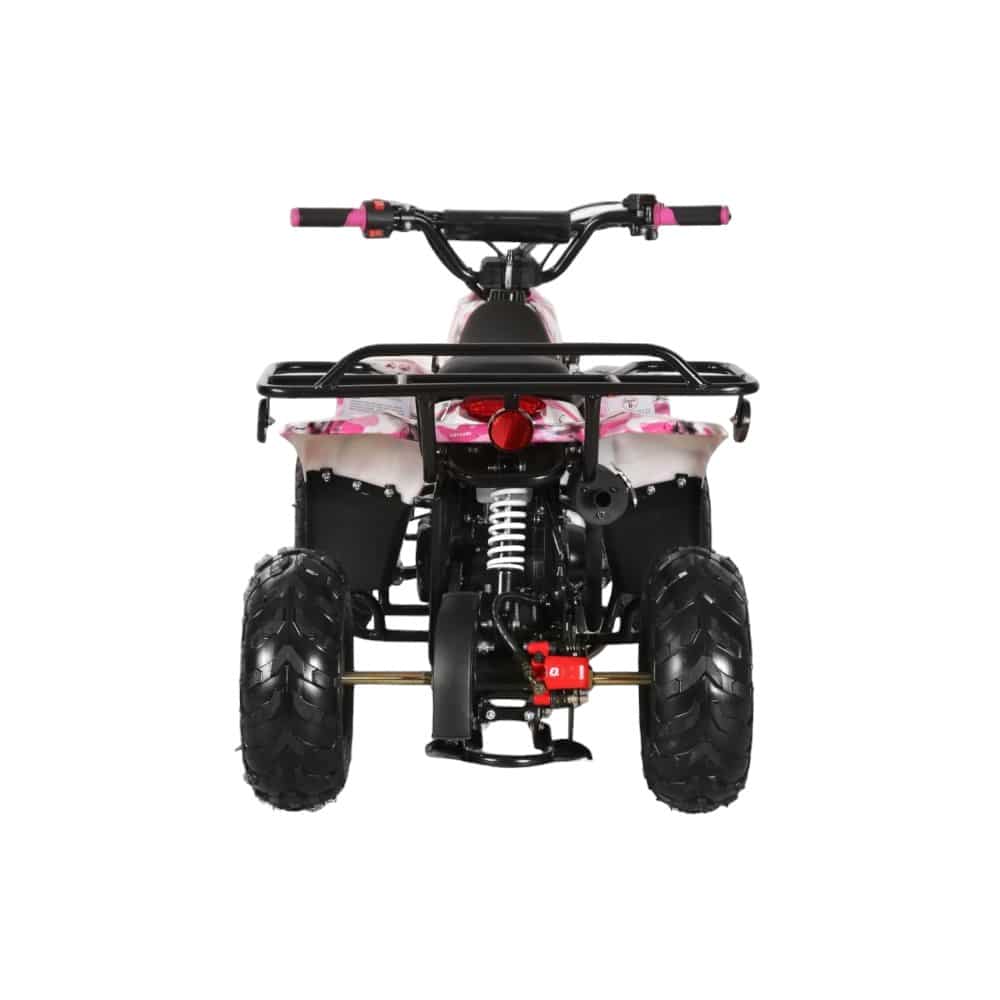

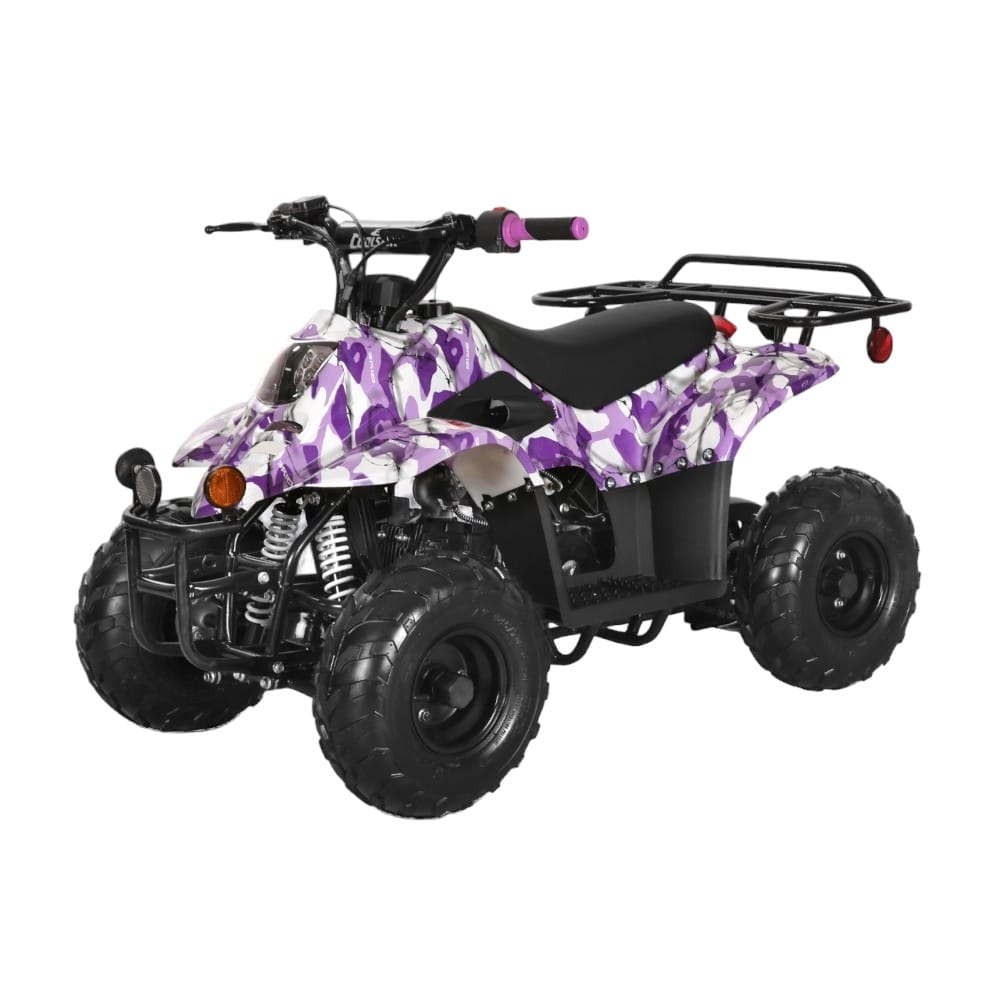

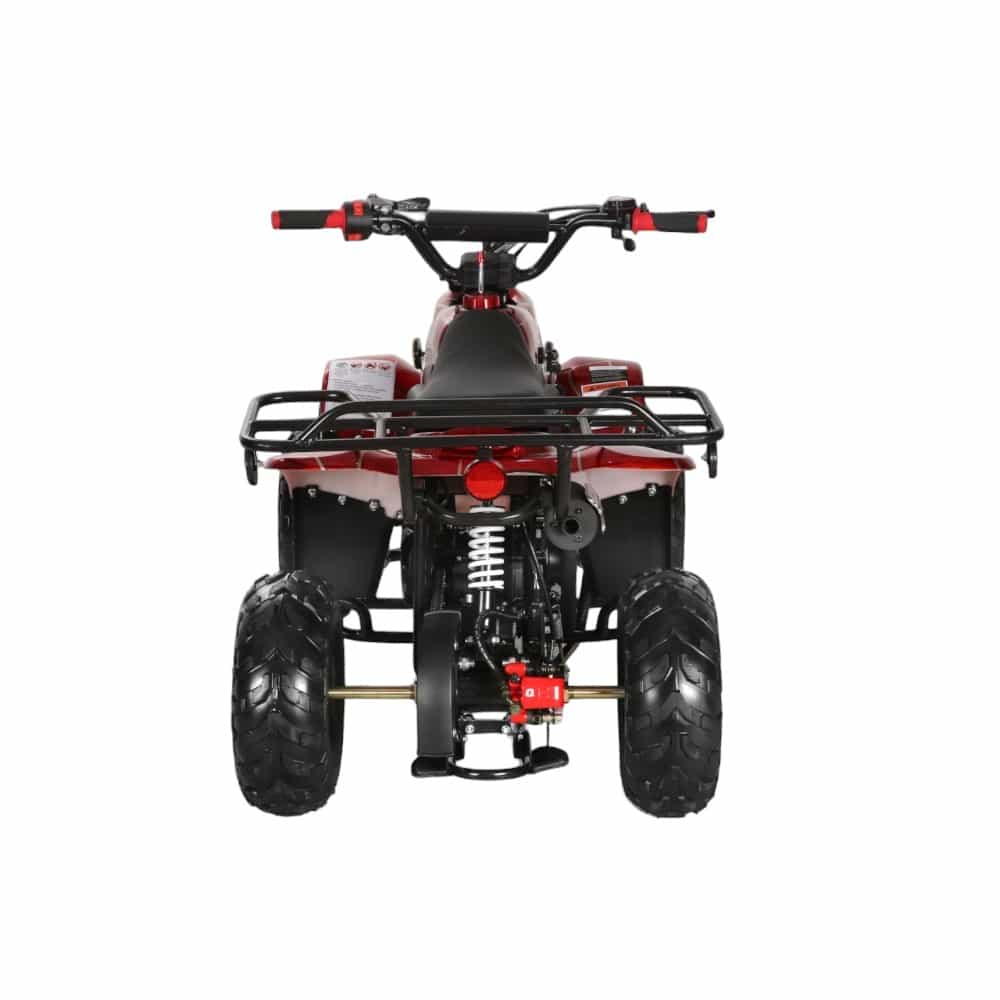

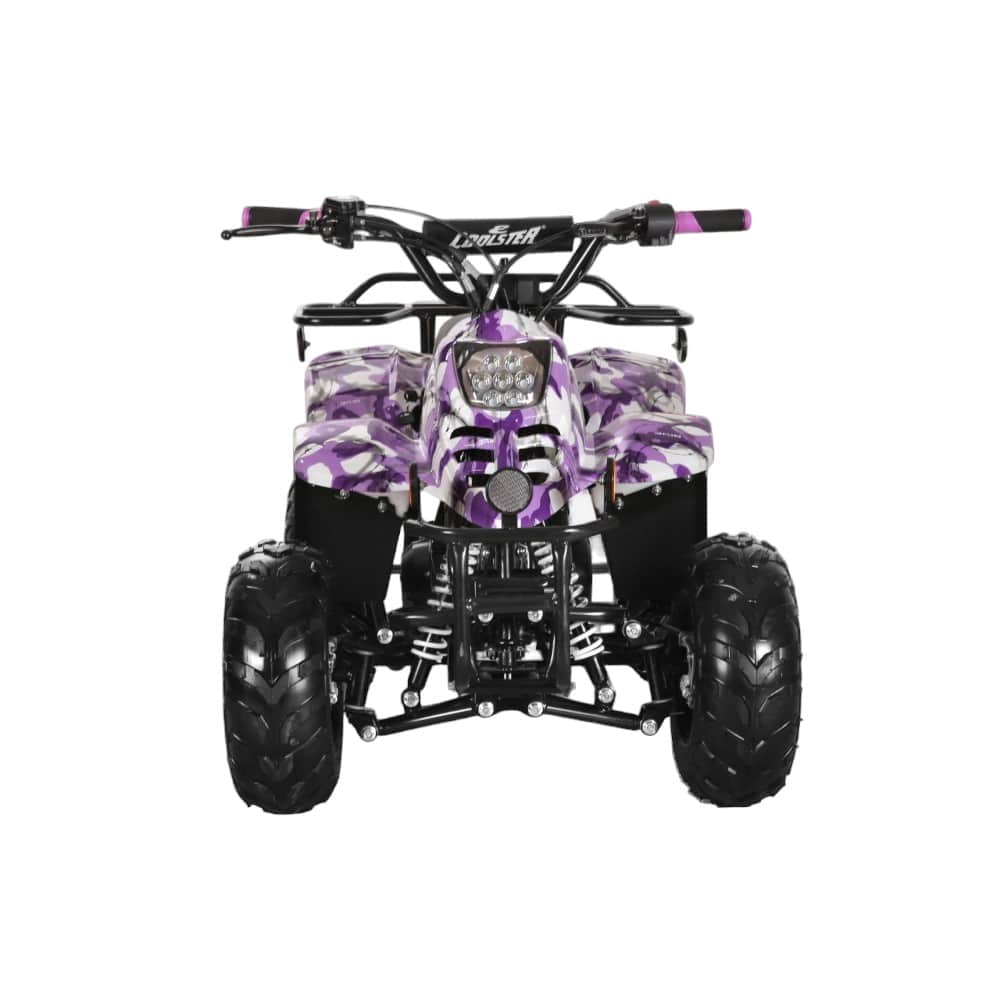

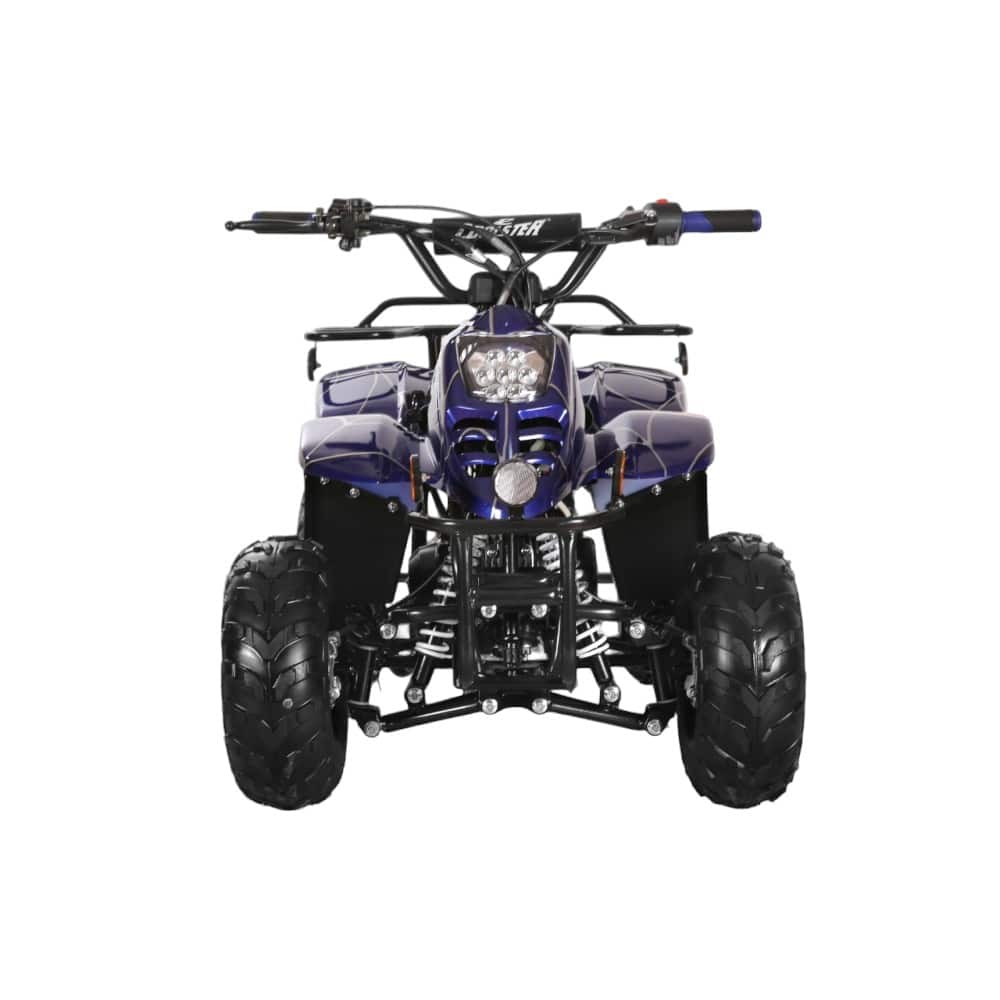

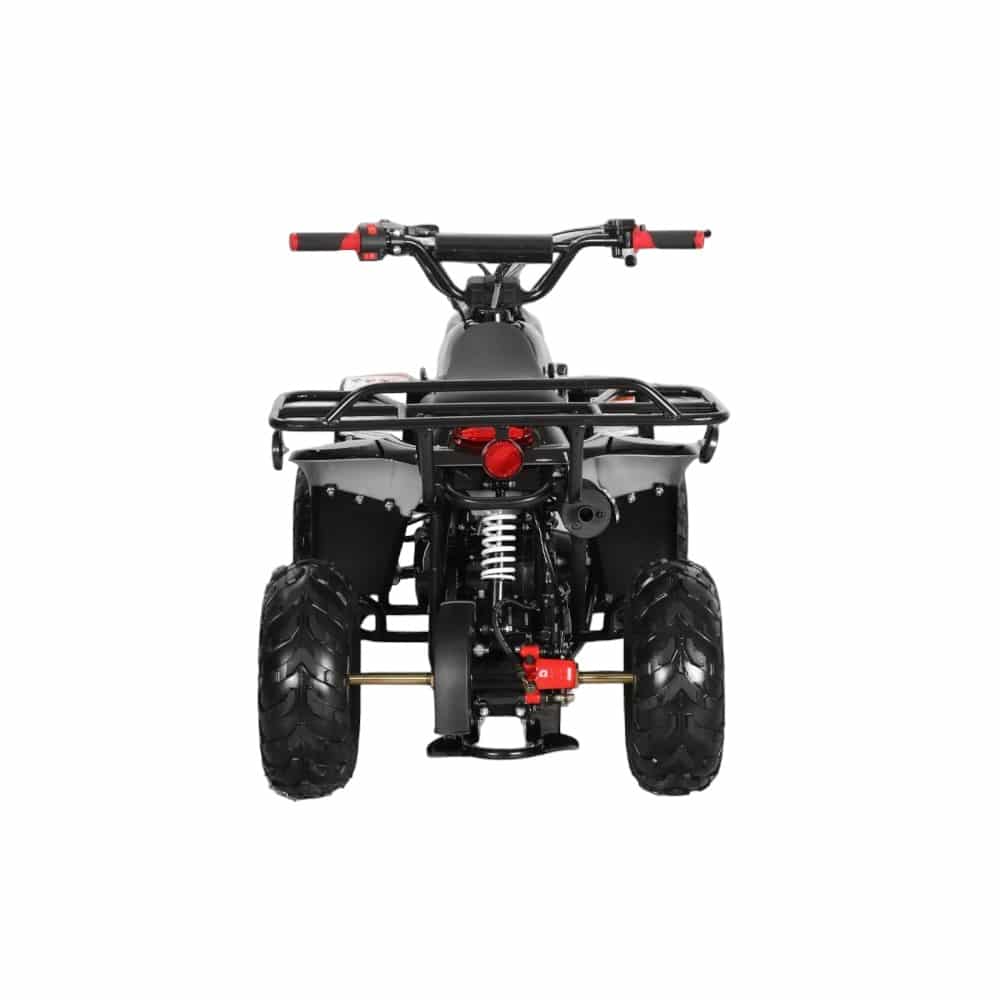

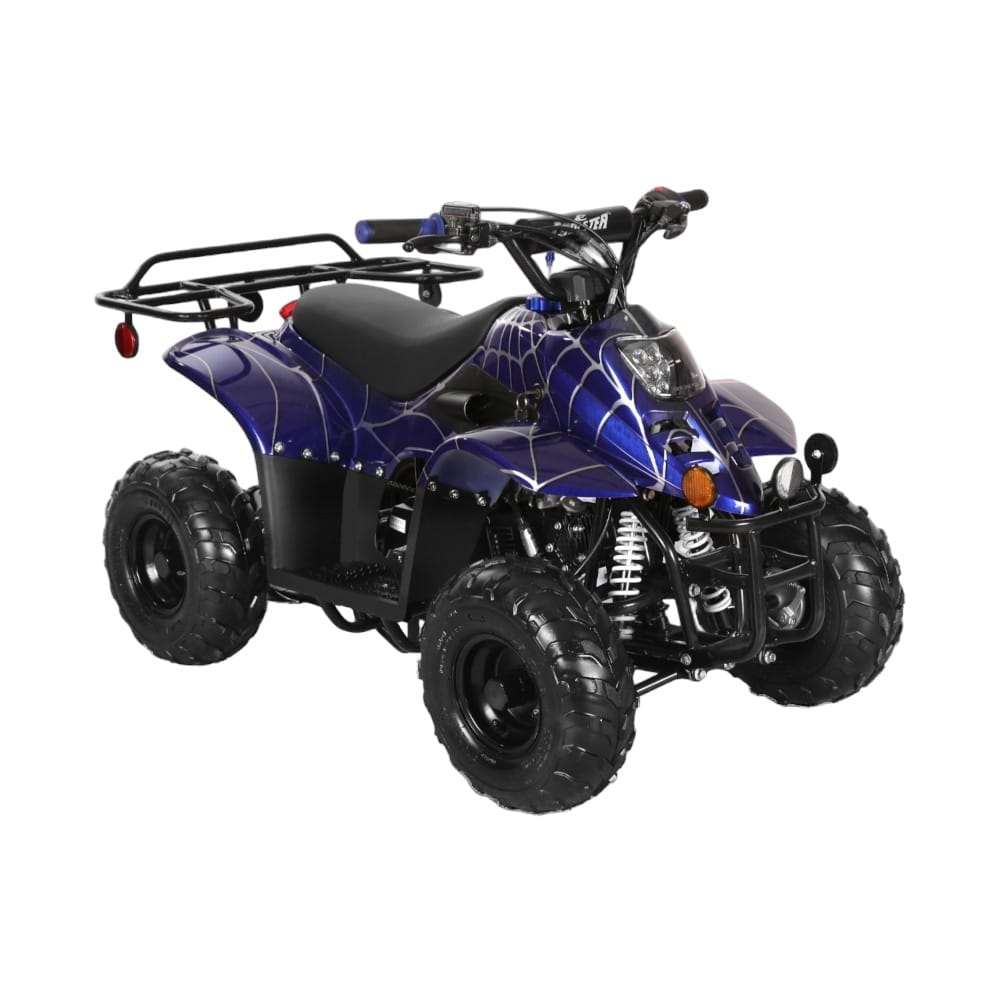

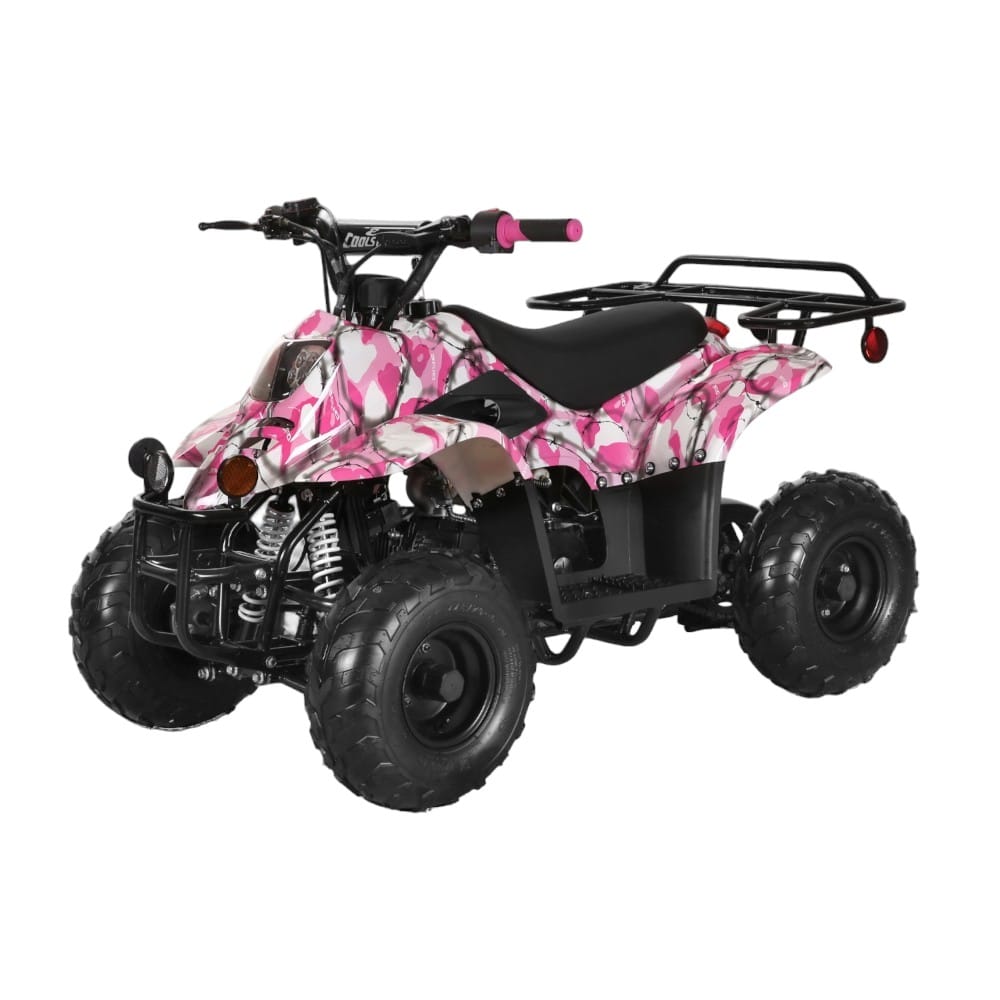

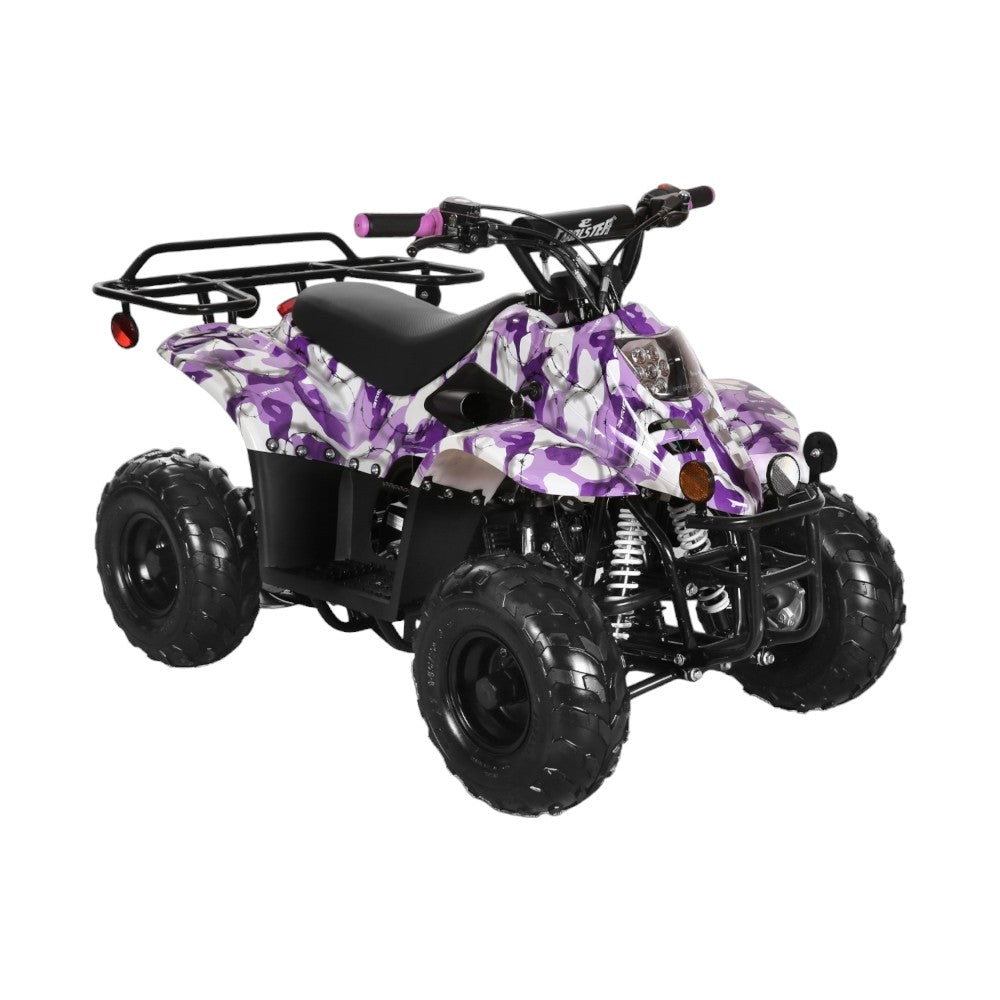

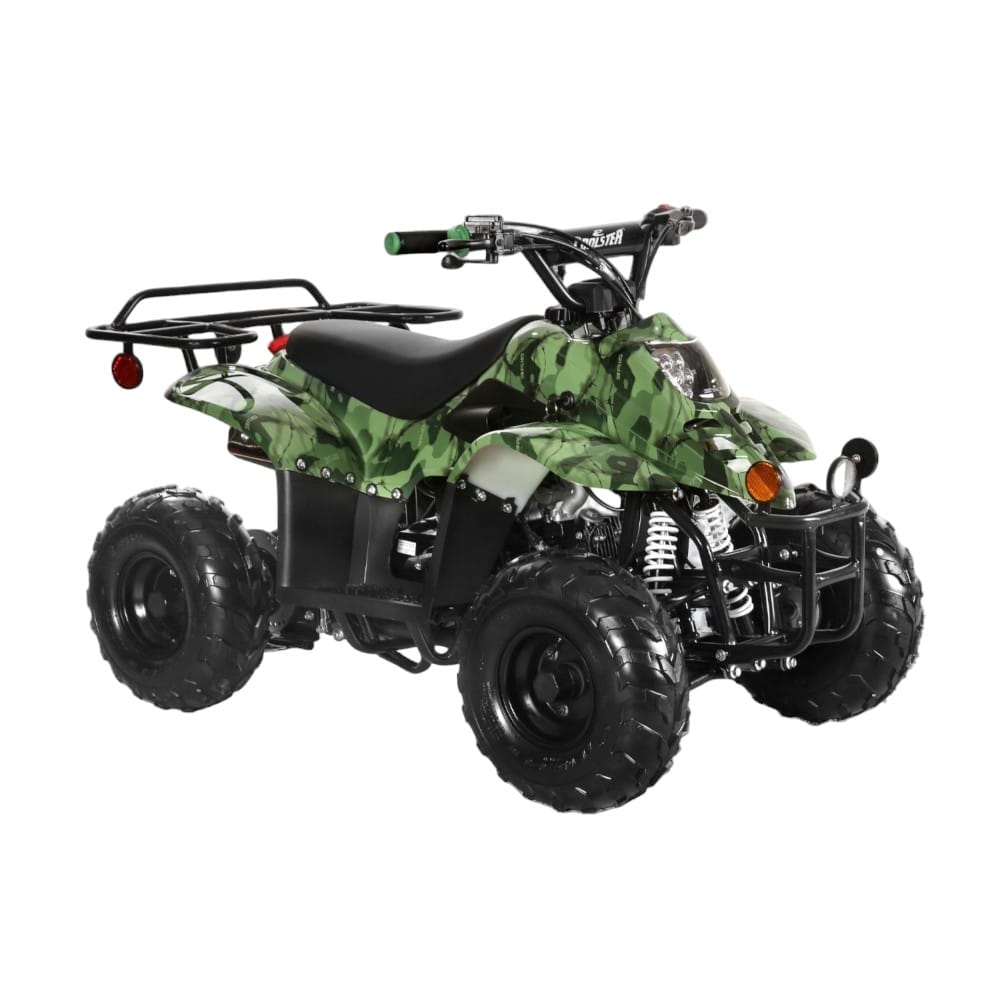

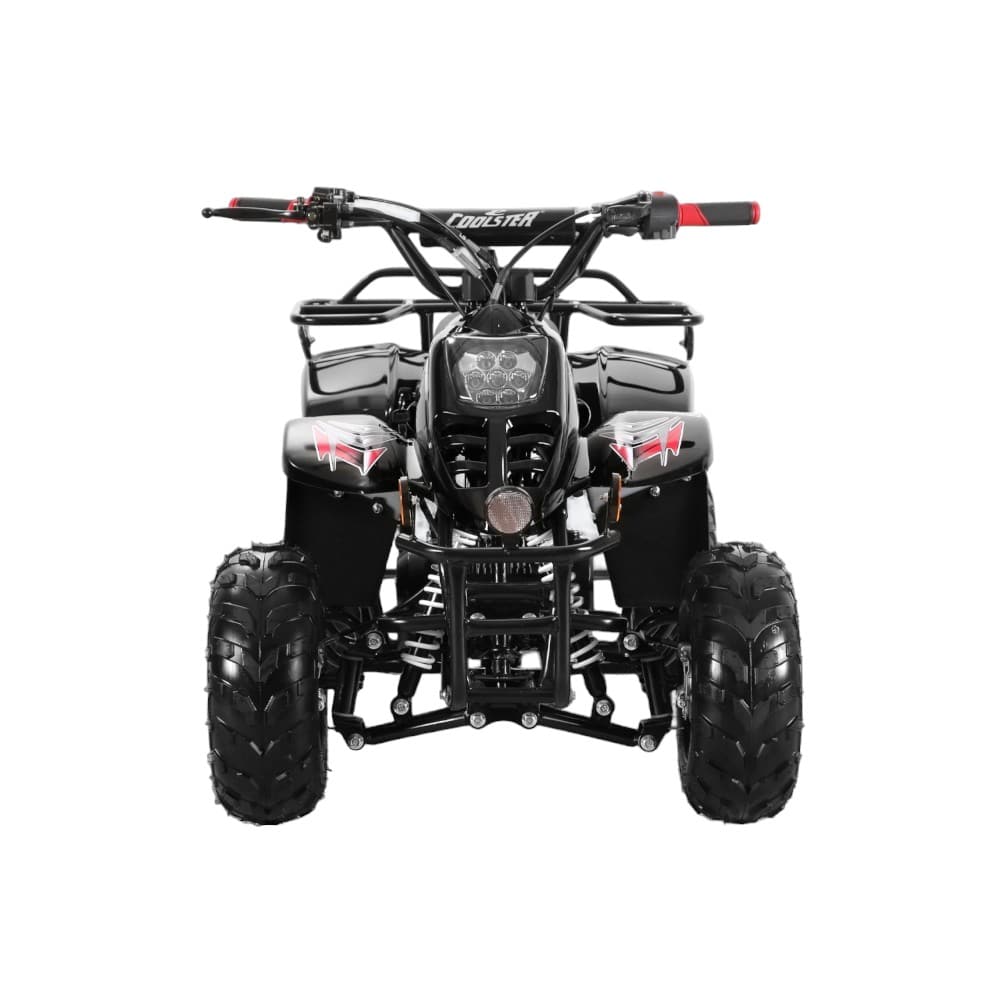

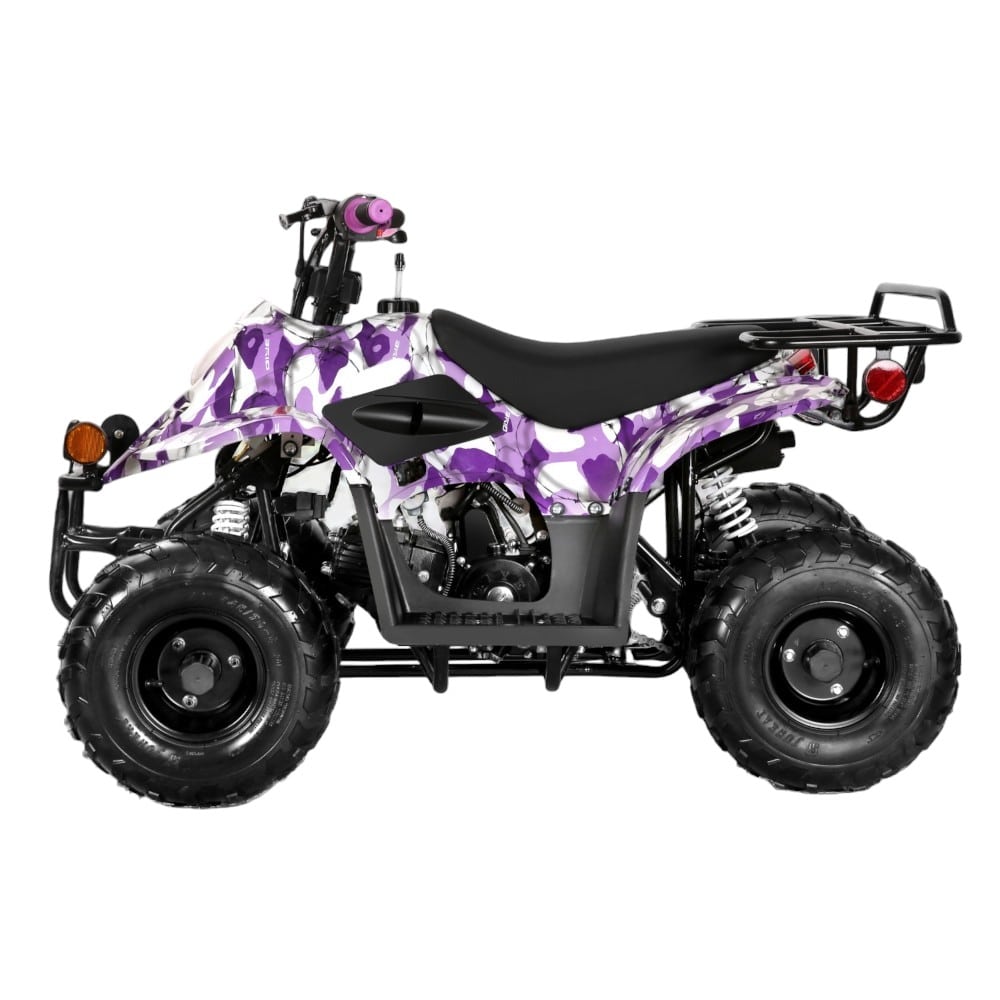

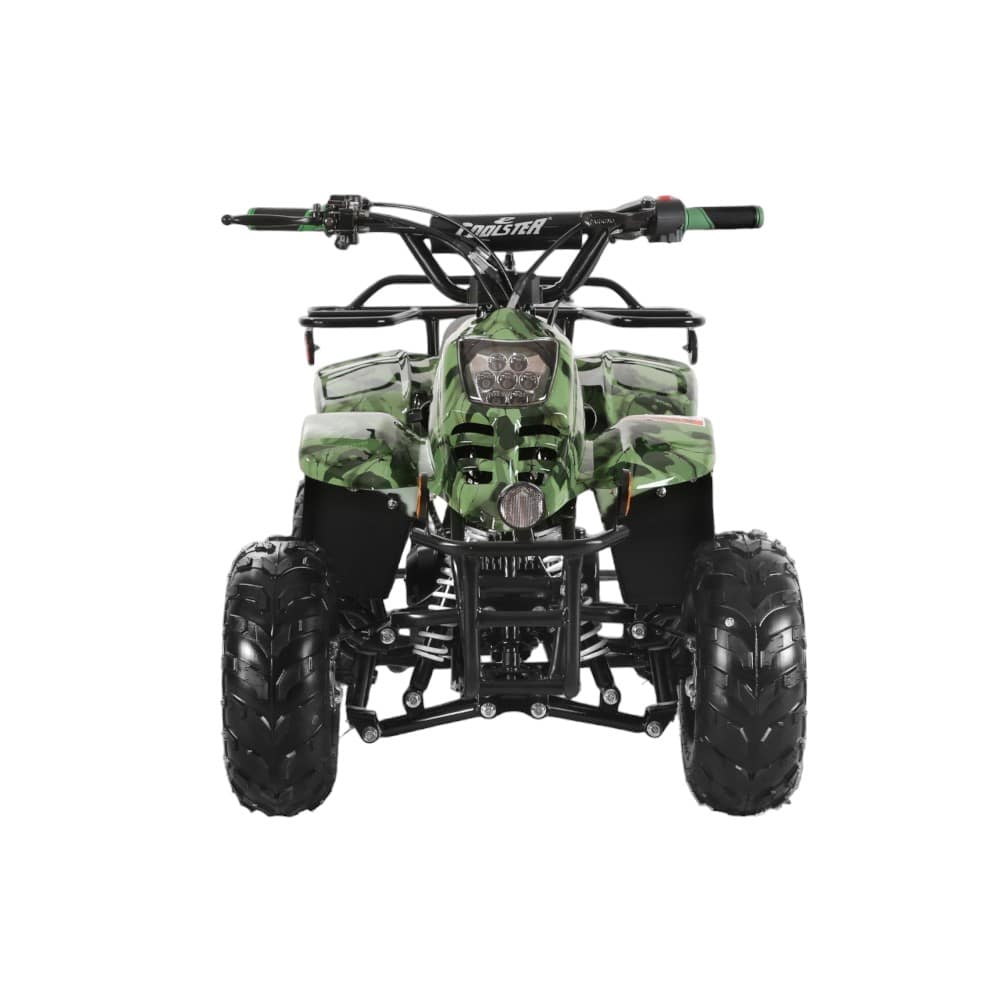

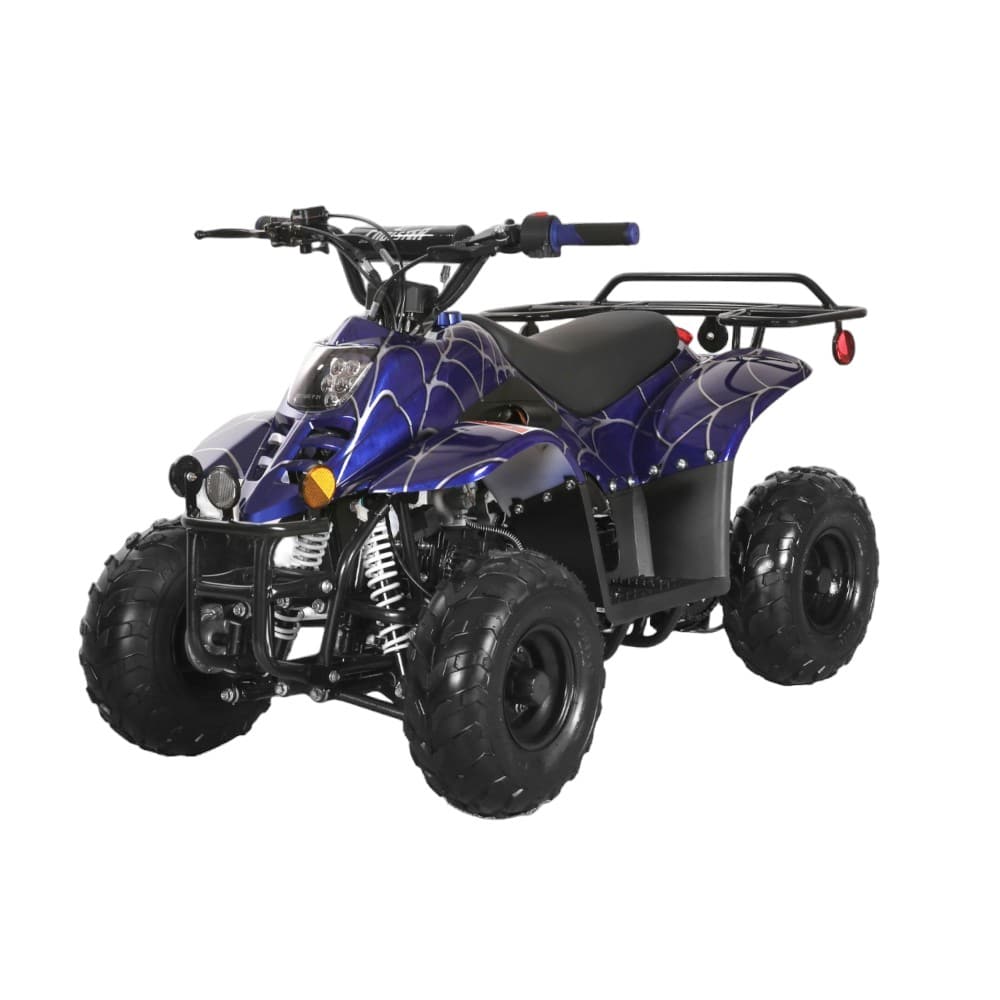

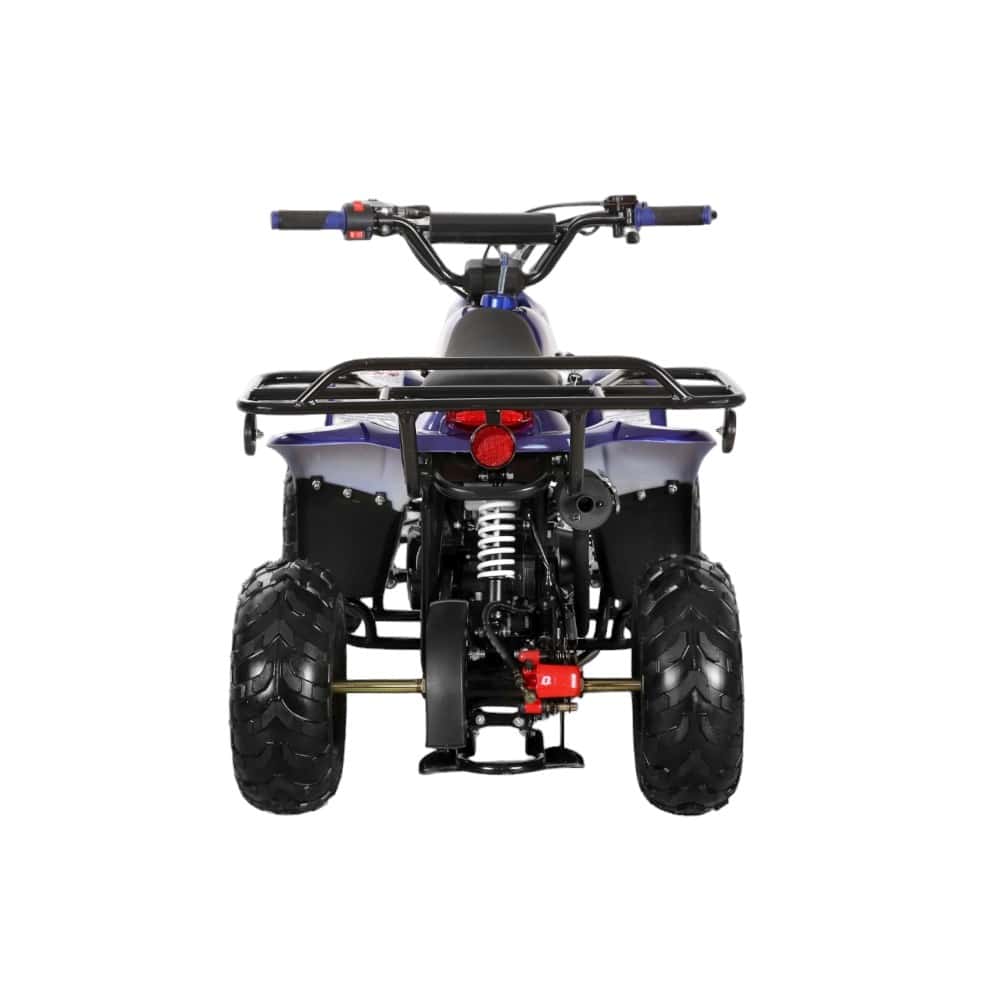

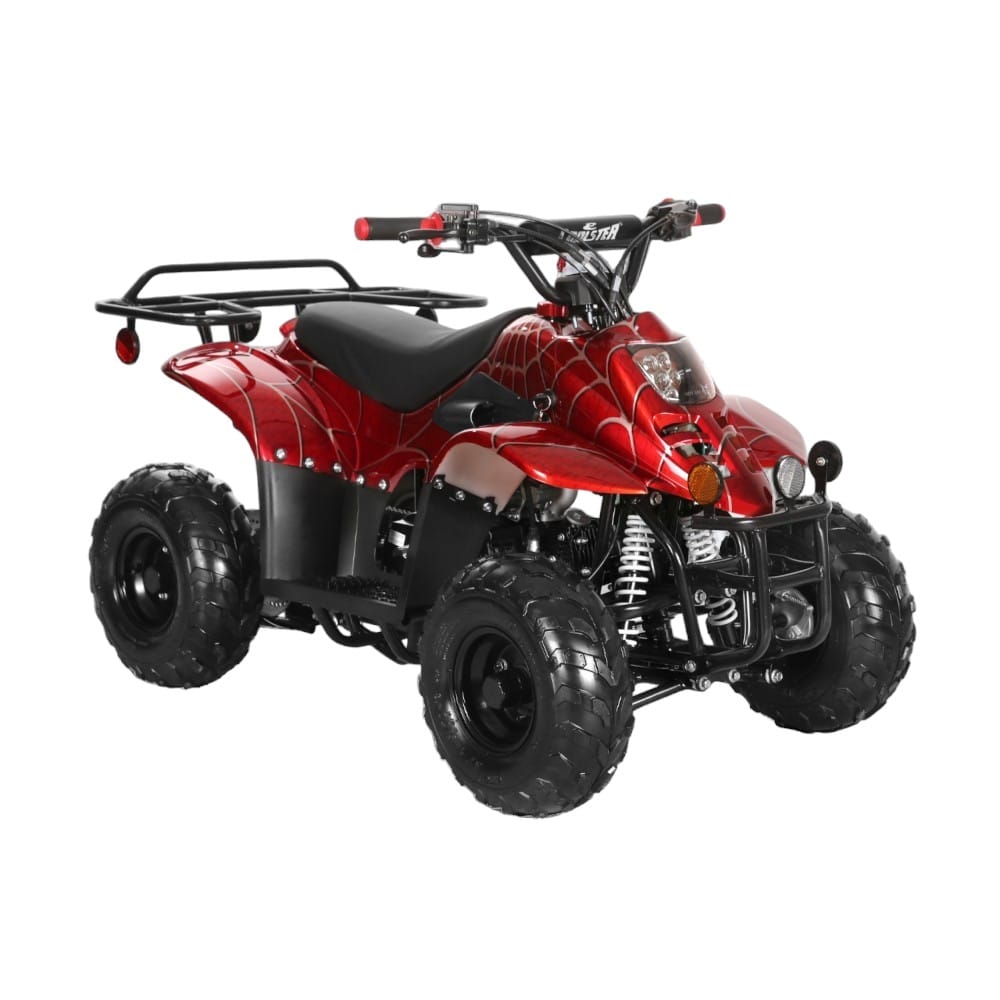

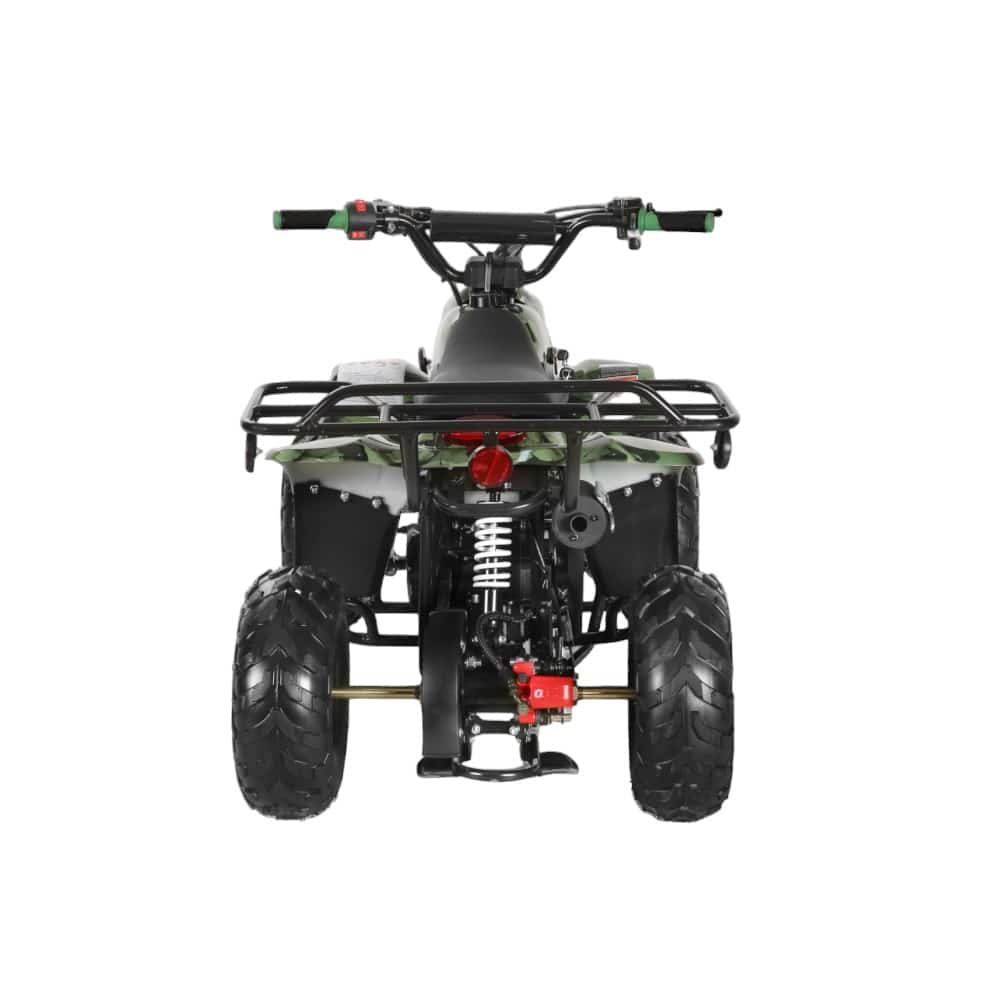

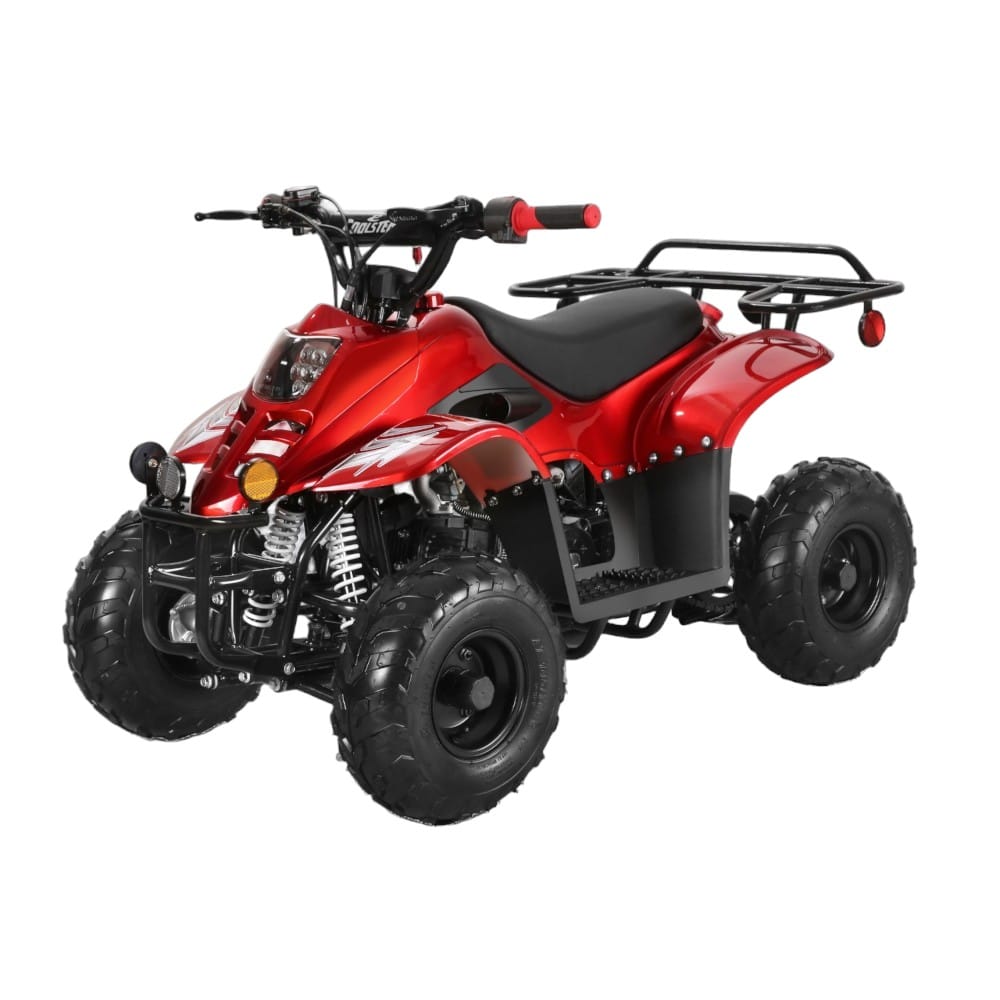

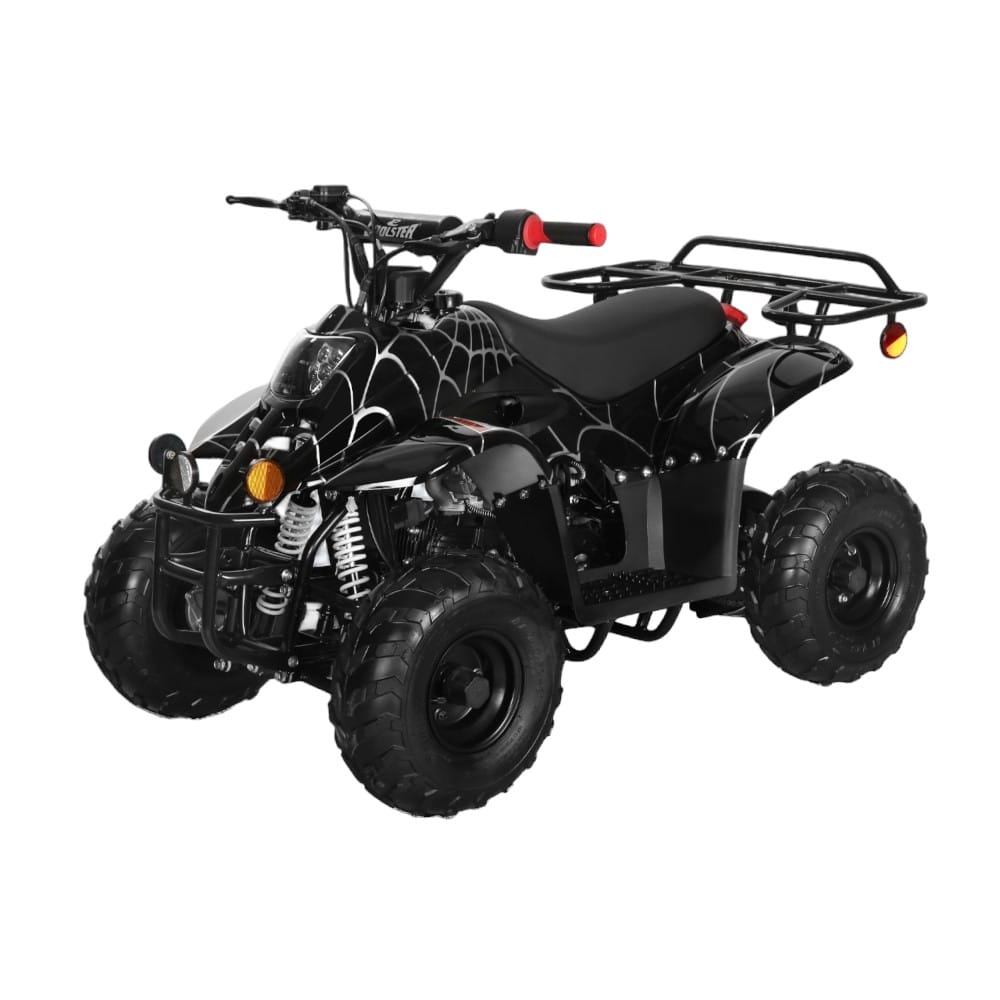

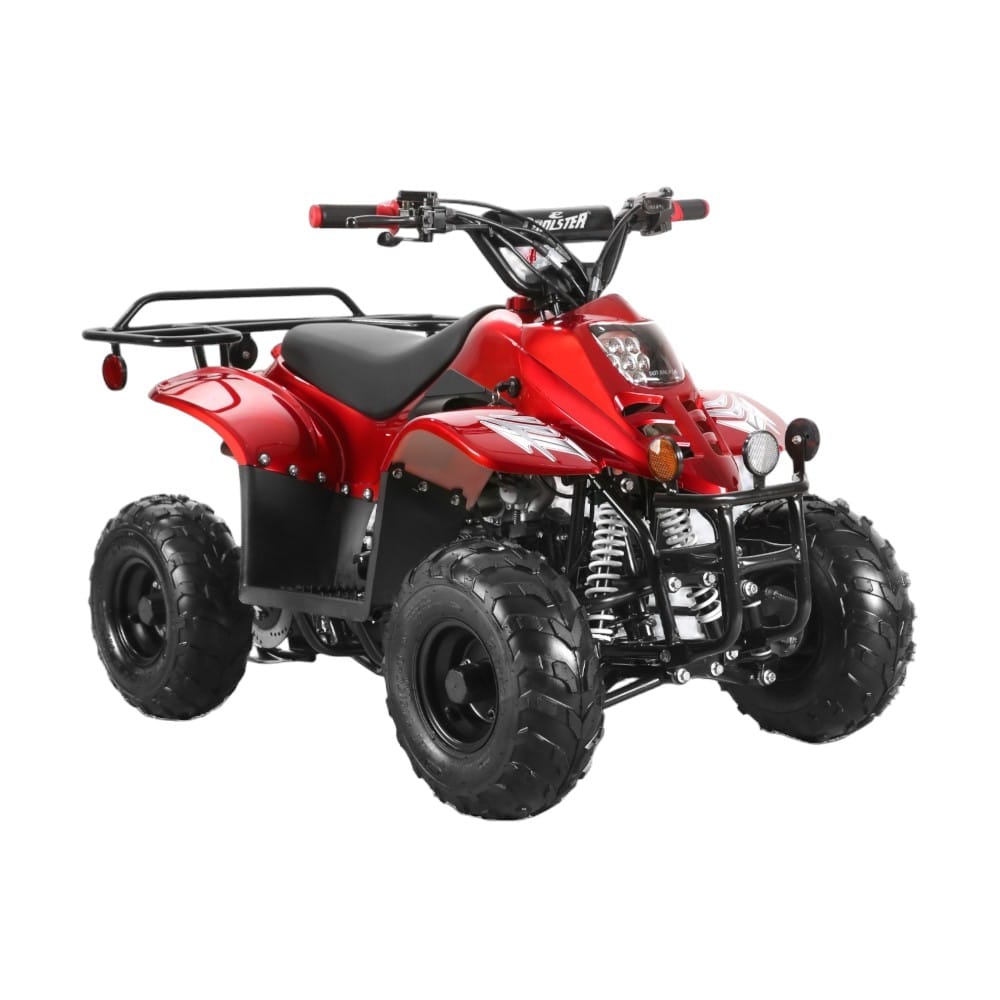

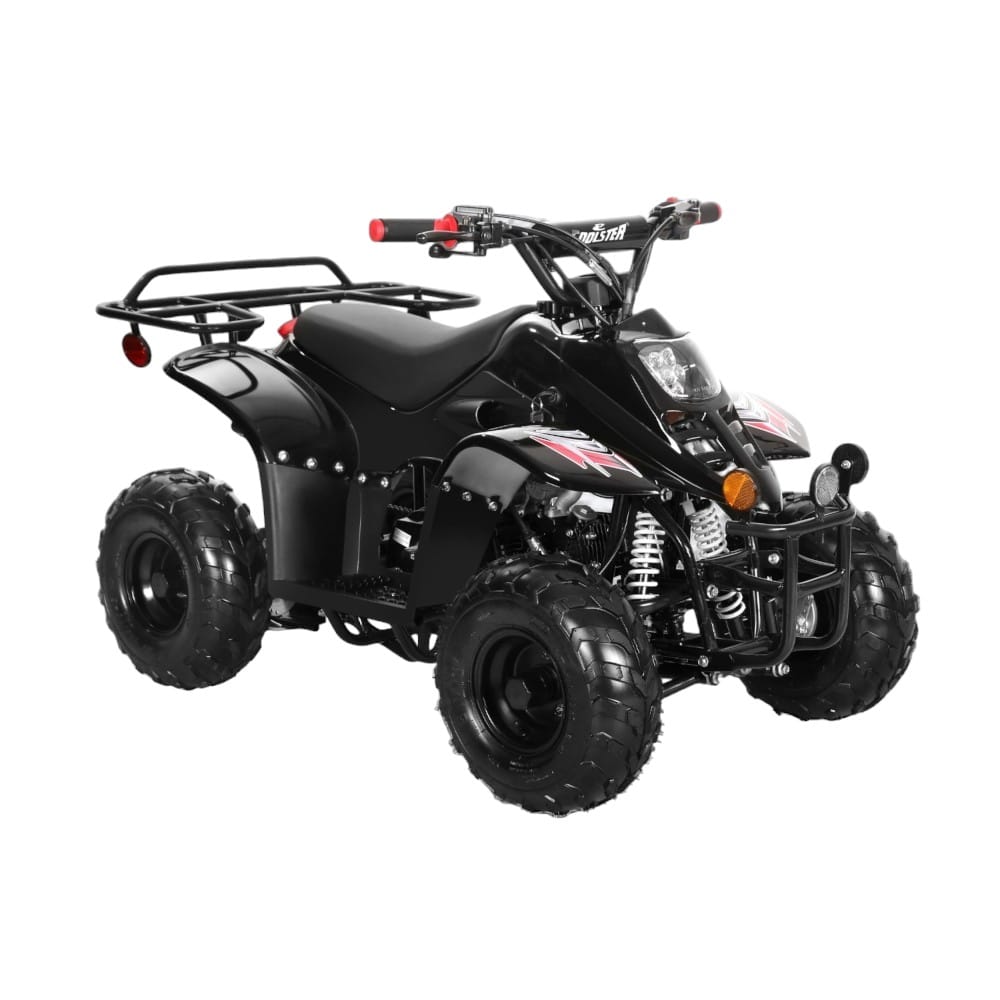

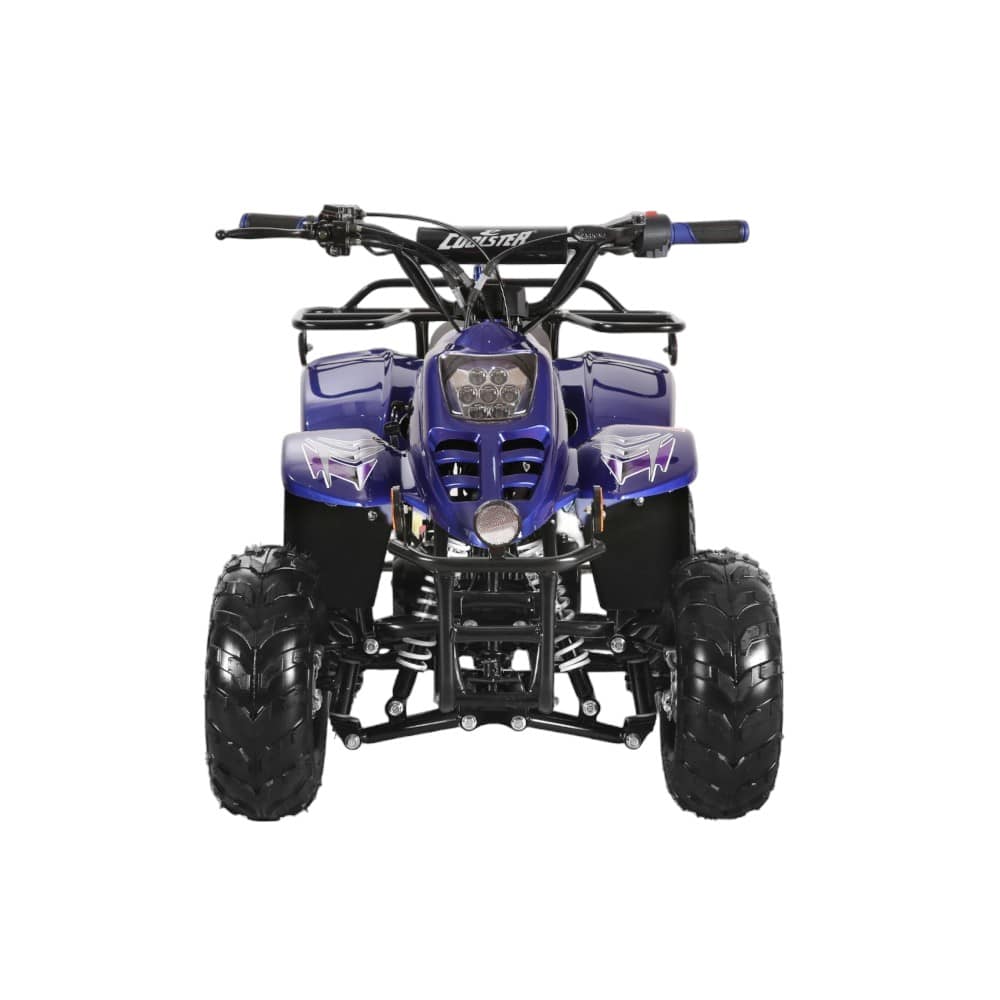

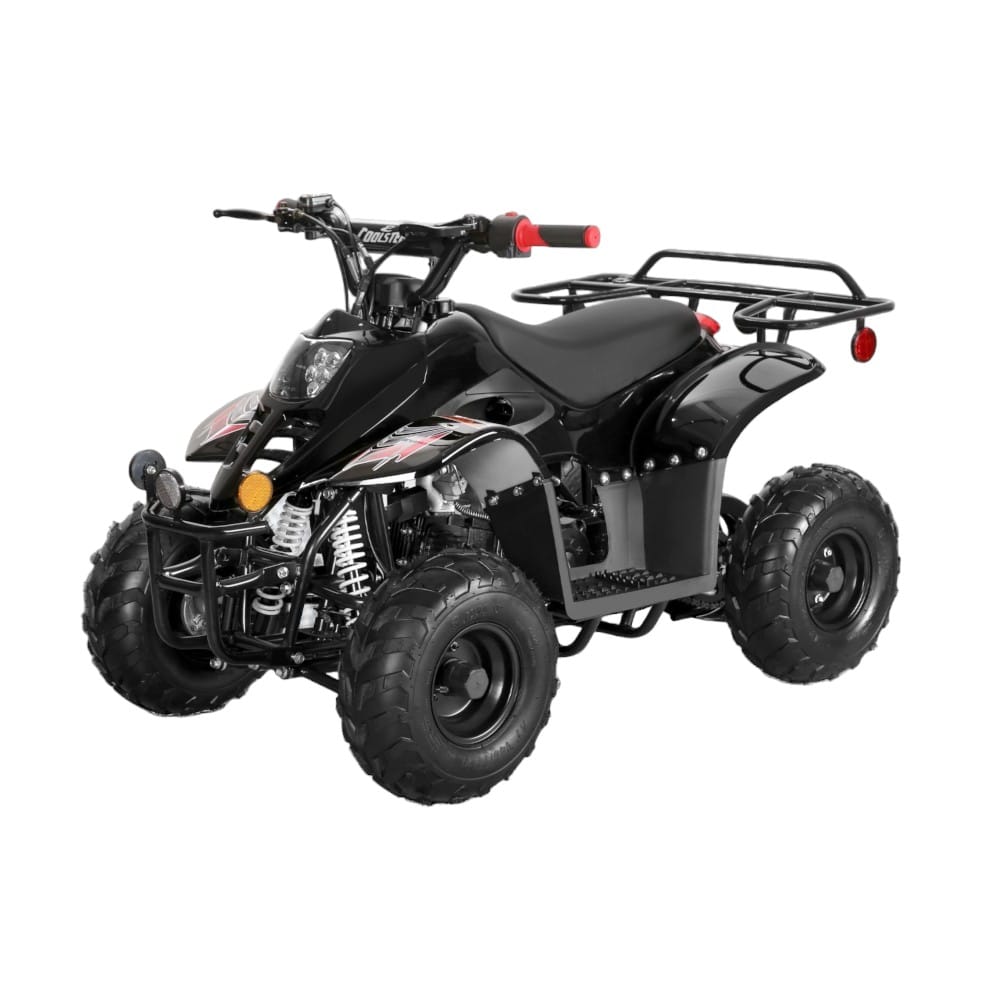

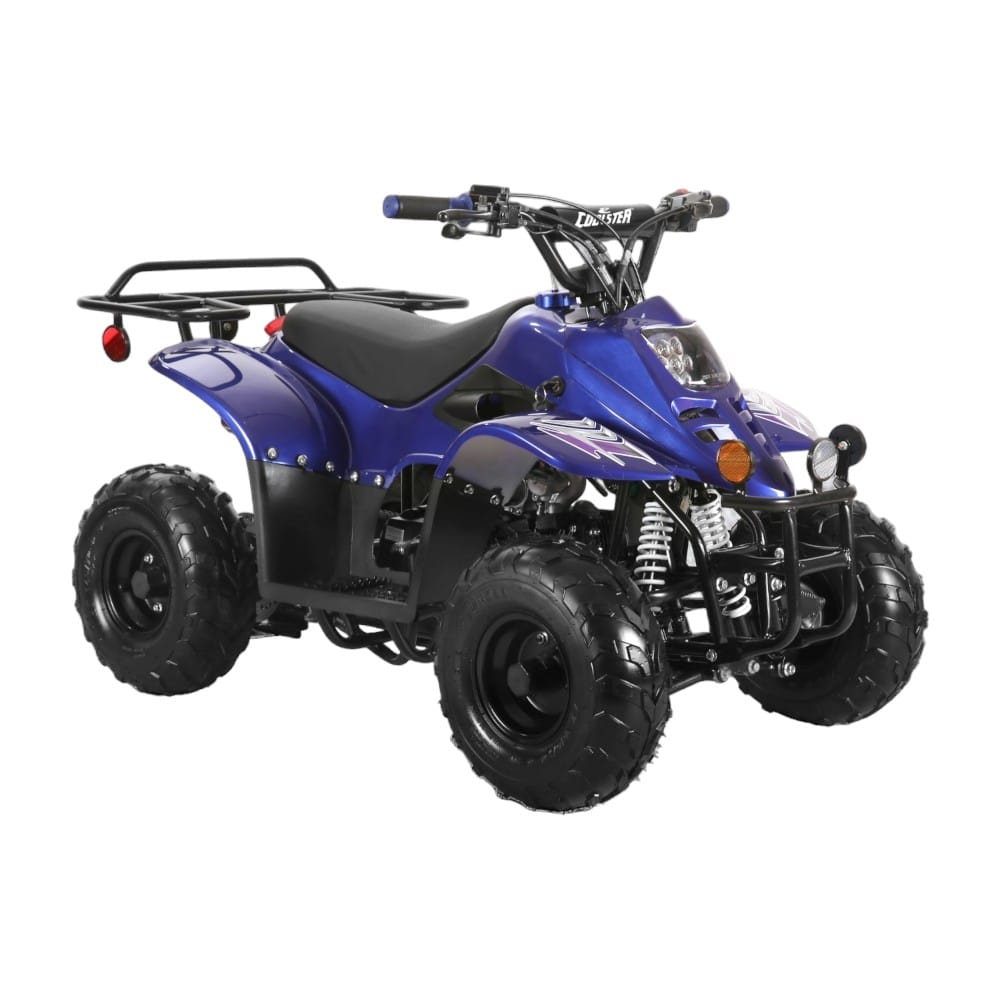

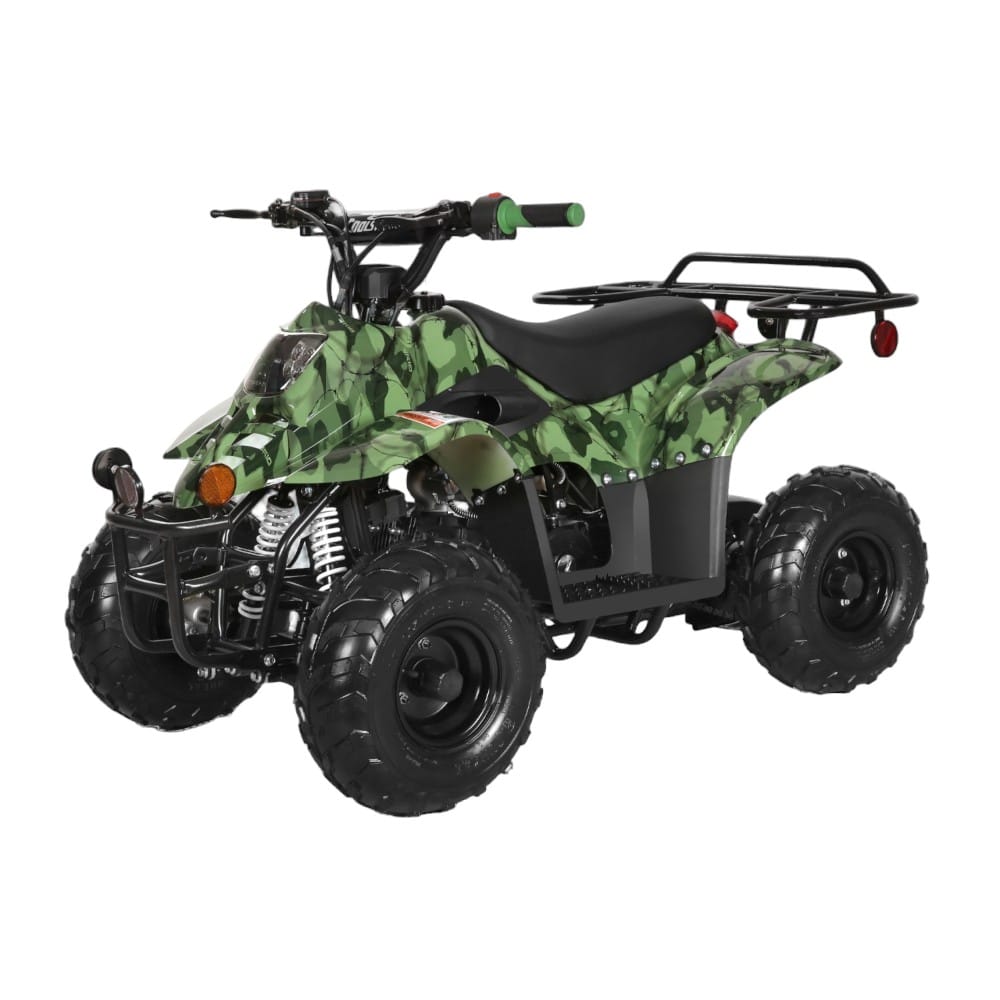

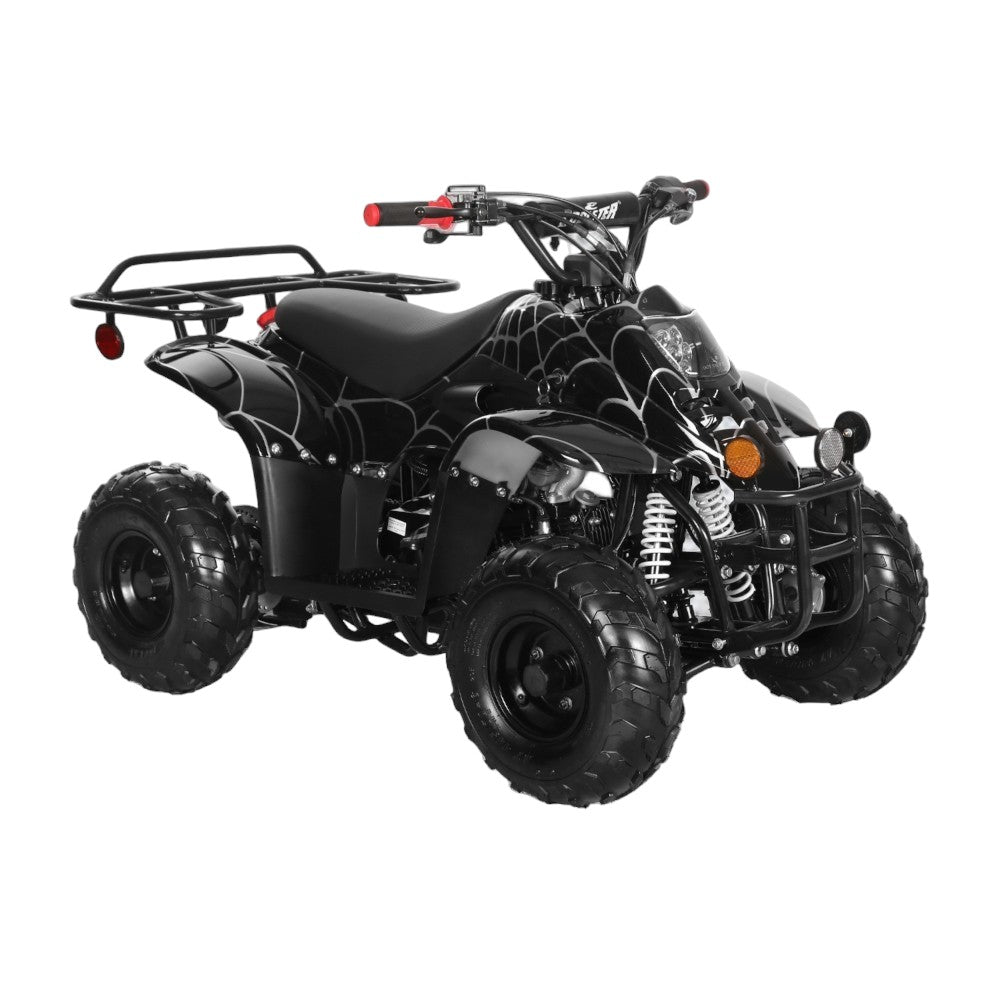

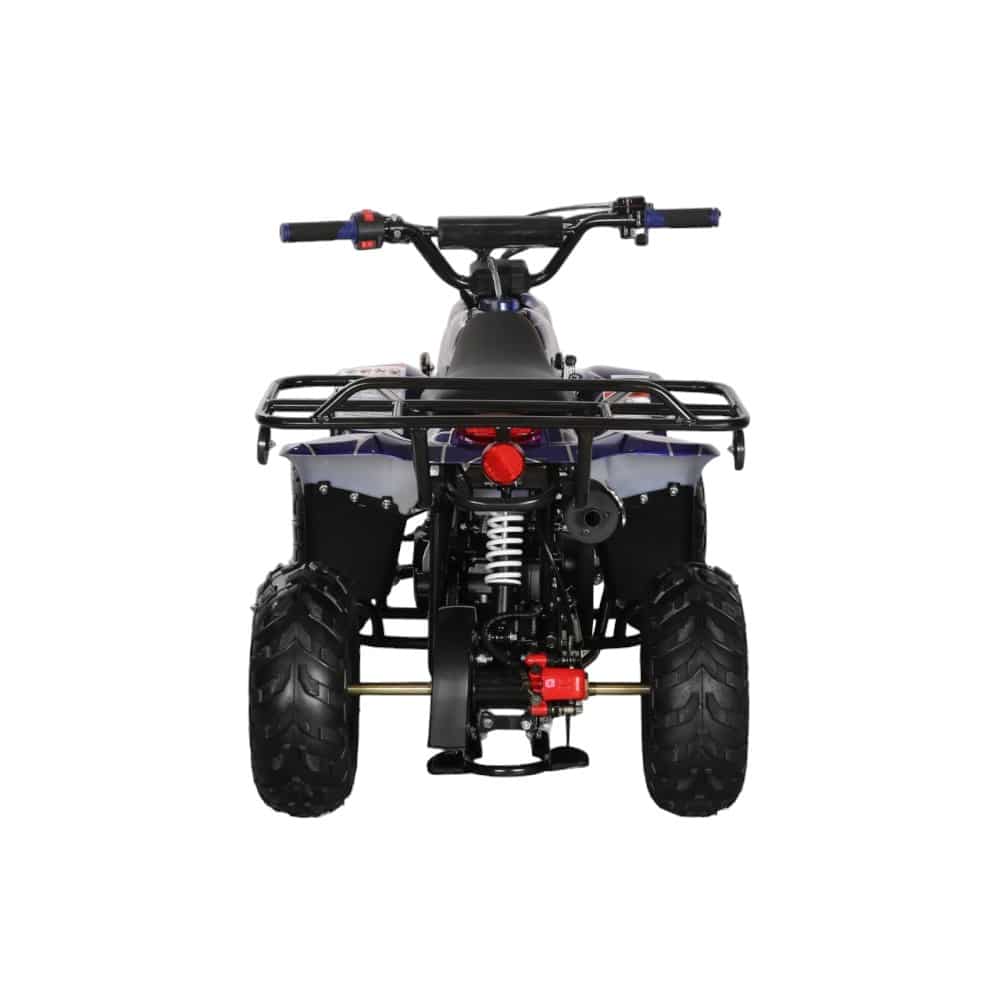

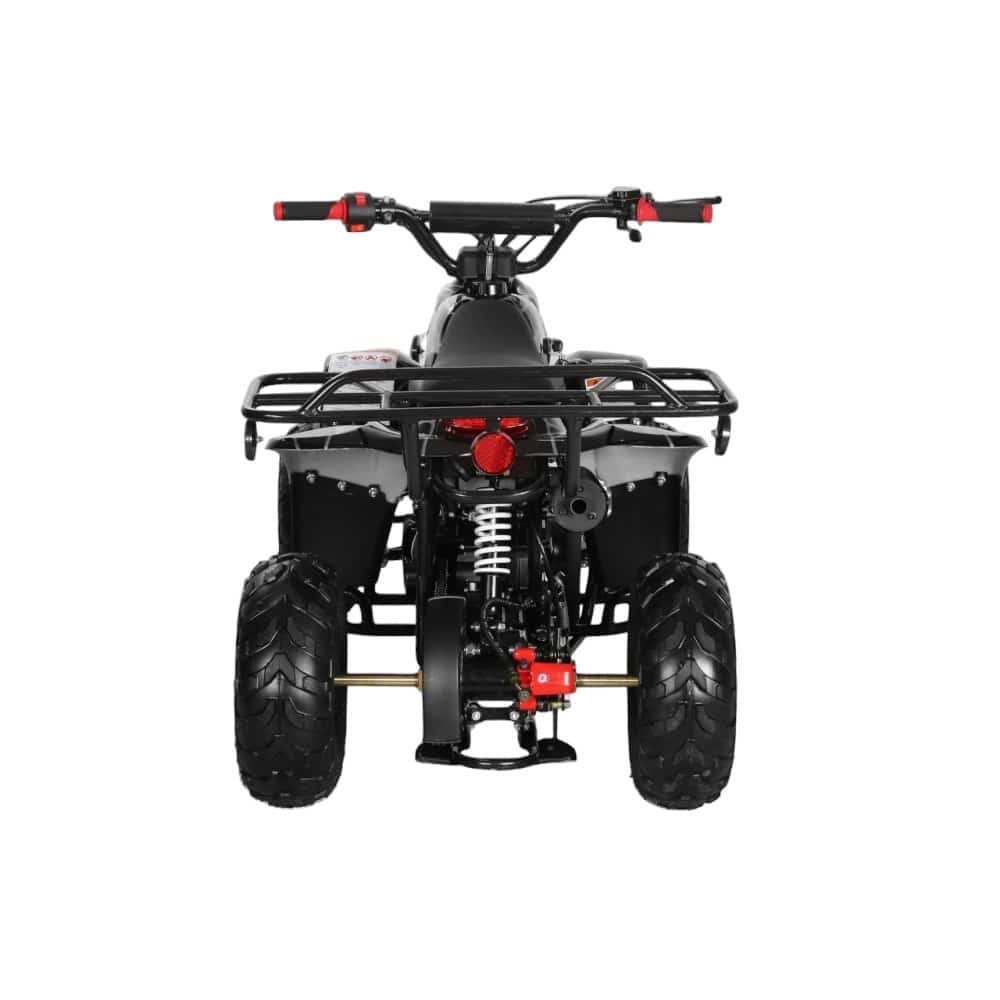

110cc ATV - 3050C

Model Number:

 ATV-3050C

 Engine Type:

 Single Cylinder, 4-Stroke, Air-Cooled

 Displacement:

 107cc

 Max Torque:

 6.9N.m/6,500 ± 500r/min (N.m/r/min)

 Max Power:

 4.8kW/8,000 ± 500r/min (kW/r/min)

 Bore Stroke:

 52.4 x 49.5mm

 Ignition:

 CDI

 Starting System:

 Electric

 Battery:

 12V, 4Ah

 Clutch:

 Automatic

 Transmission:

 Chain, Rear Wheel Drive

 Brakes Front/Rear:

 Drum/Hydraulic Disc

 Tires Front/Rear:

 145/70-6 145/70-6

 Fuel Capacity:

 0.54 gallons / 2.06L

 Weight:

 (G.W./N.W) 154 lbs/176 lbs

 Max Load:

 145 lbs / 65 kg (rider, all cargo and accessories)

 Wheelbase:

 860mm

 Dimensions:

 1,275 x 930 x 900mm

 Height to Seat:

 440mm

 Min. Ground Clearance:

 85mm
