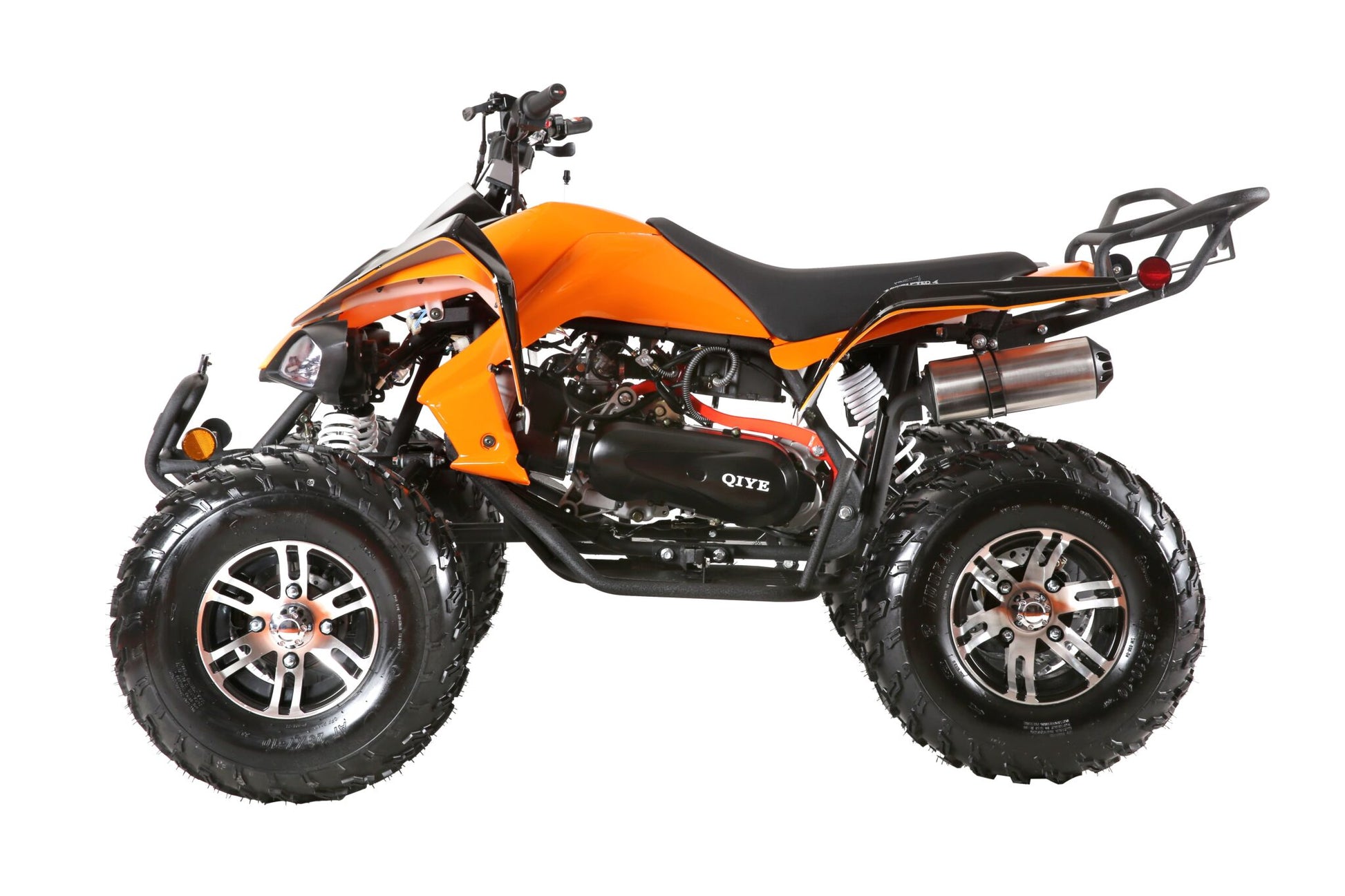

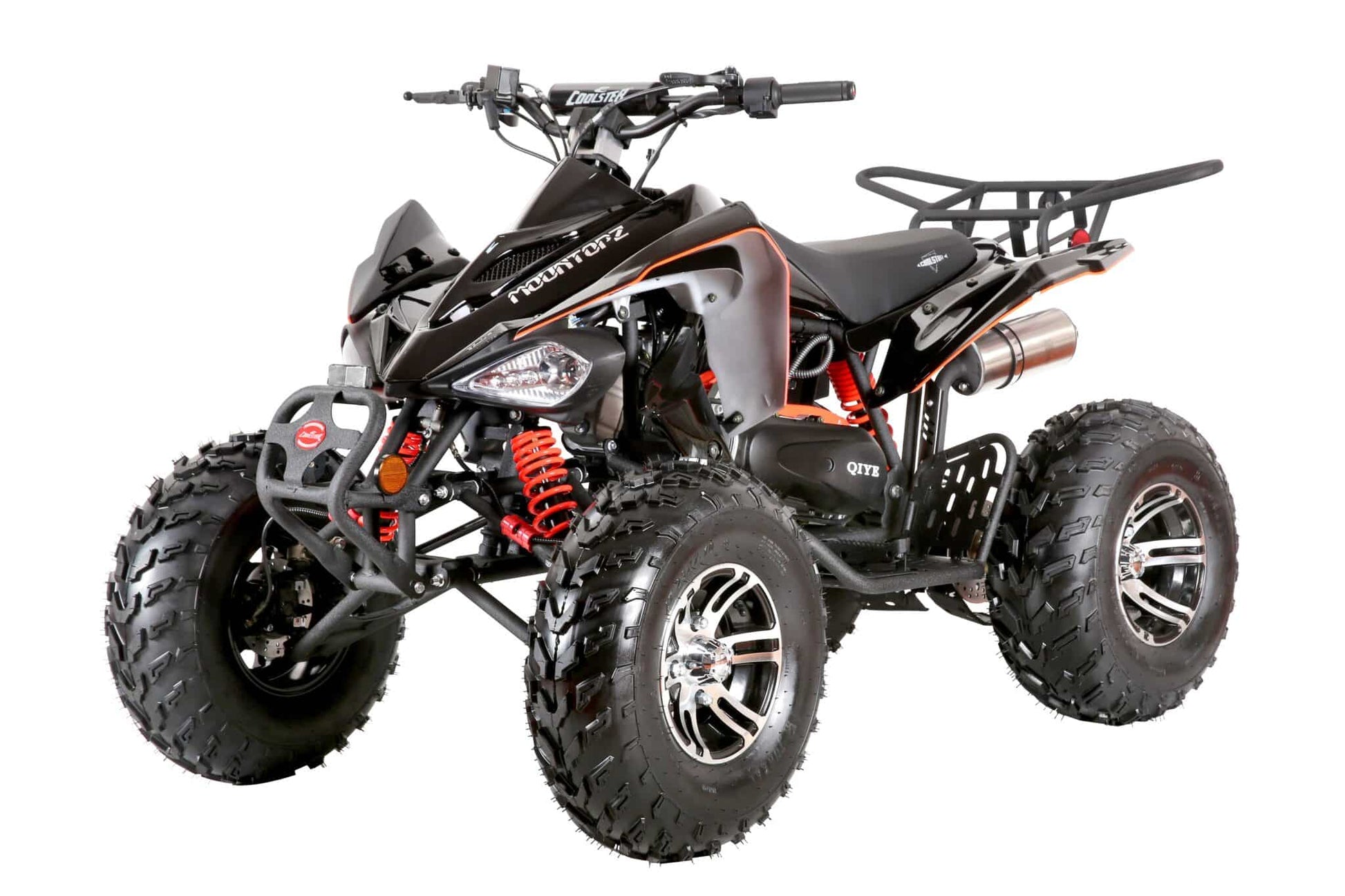

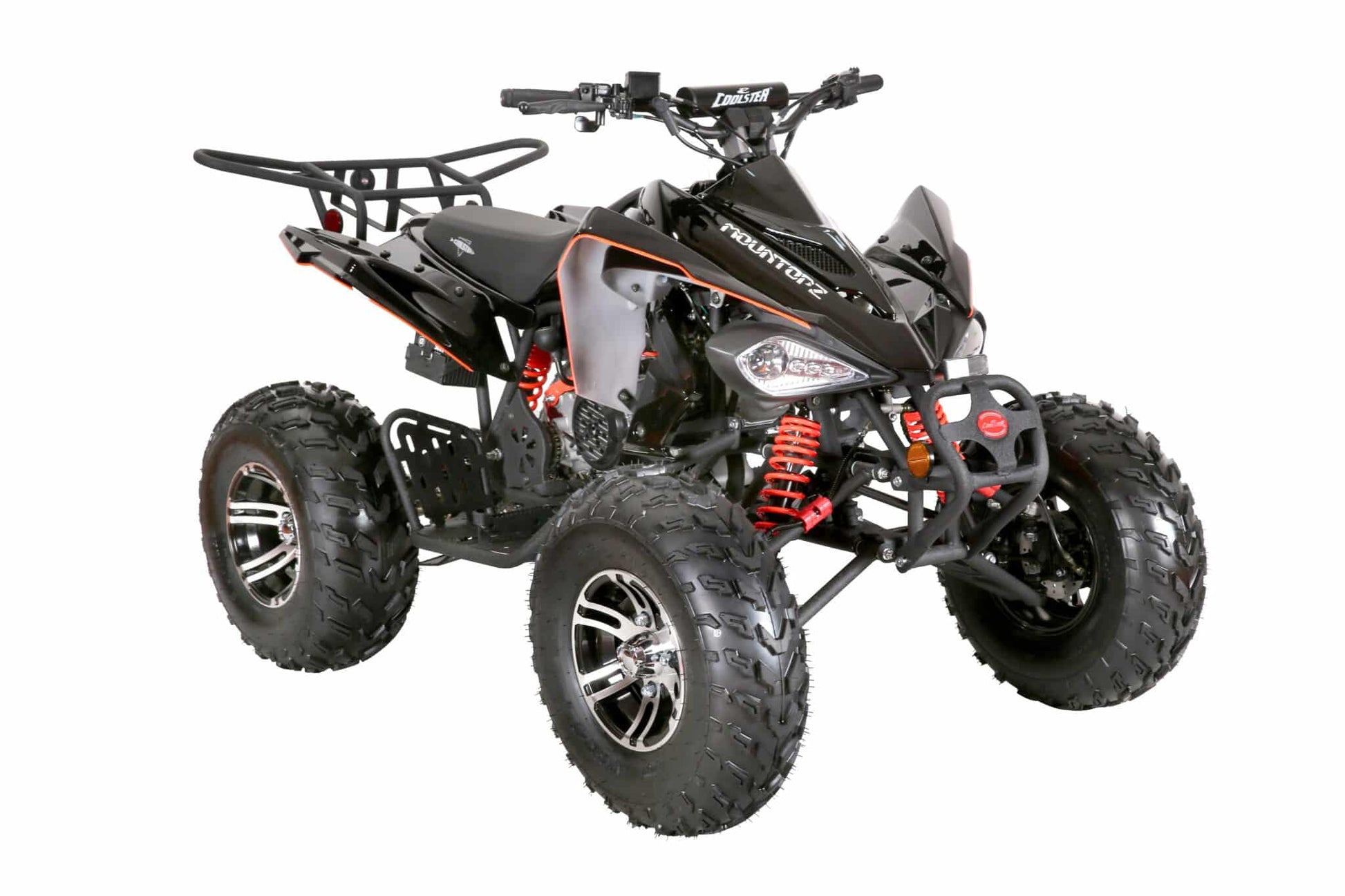

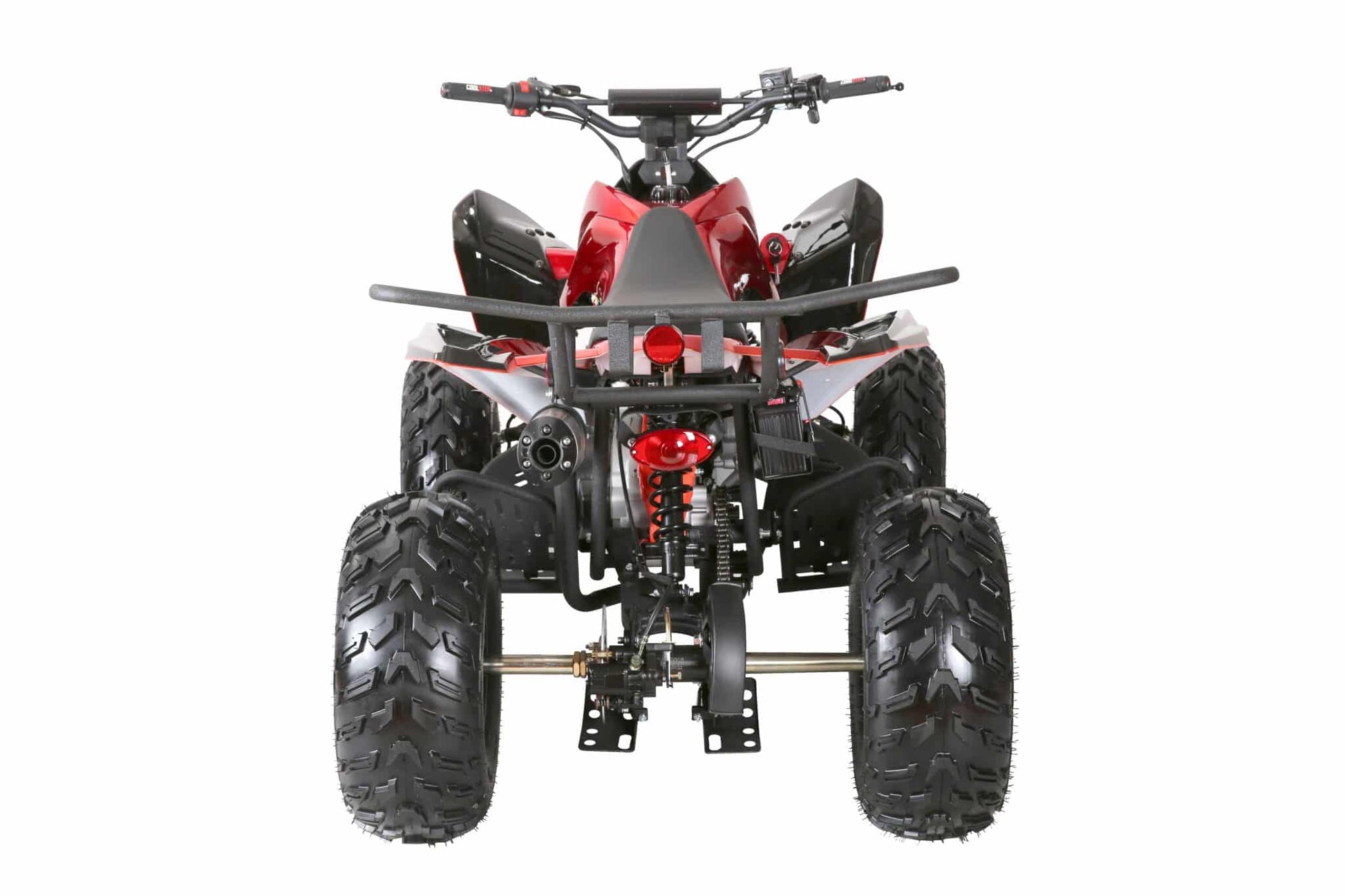

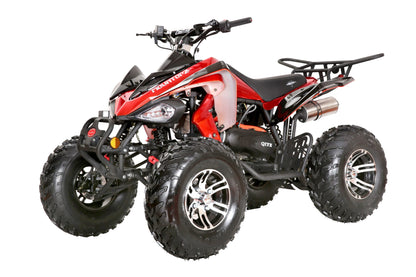

170cc ATV - 3200S

Model Number:

 ATV-3200S/ATV-EV3200S

 Engine Type:

 Single Cylinder, 4-Stroke, Air-Cooled

 Displacement:

 168.9cc

 Max Torque:

 10.2 N·m/5000 r/min (N.m/r/min)

 Max Power:

 7.6 kW/7000 r/min(kW/r/min)

 Bore Stroke:

 61 x 57.8mm

 Ignition:

 CDI

 Starting System:

 Electric

 Battery:

 12V, 4Ah

 Clutch:

 Automatic

 Transmission:

 Chain, Rear Wheel Drive

 Brakes Front/Rear:

 Hydraulic Disc

 Tires Front/Rear:

 23×7-10 / 22×10-10

 Fuel Capacity:

 1.35 gallons / 5.1L

 Maximum Weight Capacity:

 220 lbs / 100 kg (rider, all cargo and accessories)

 Wheelbase:

 1,195mm

 Dimensions:

 1,900 x 1,120 x 1,160mm

 Height to Seat:

 440mm

 Min. Ground Clearance:

 130mm
